Tings Turnkey Solution

重金属(铁锰)超标水源处理方案

Iron and Manganese Water

Solution Digram

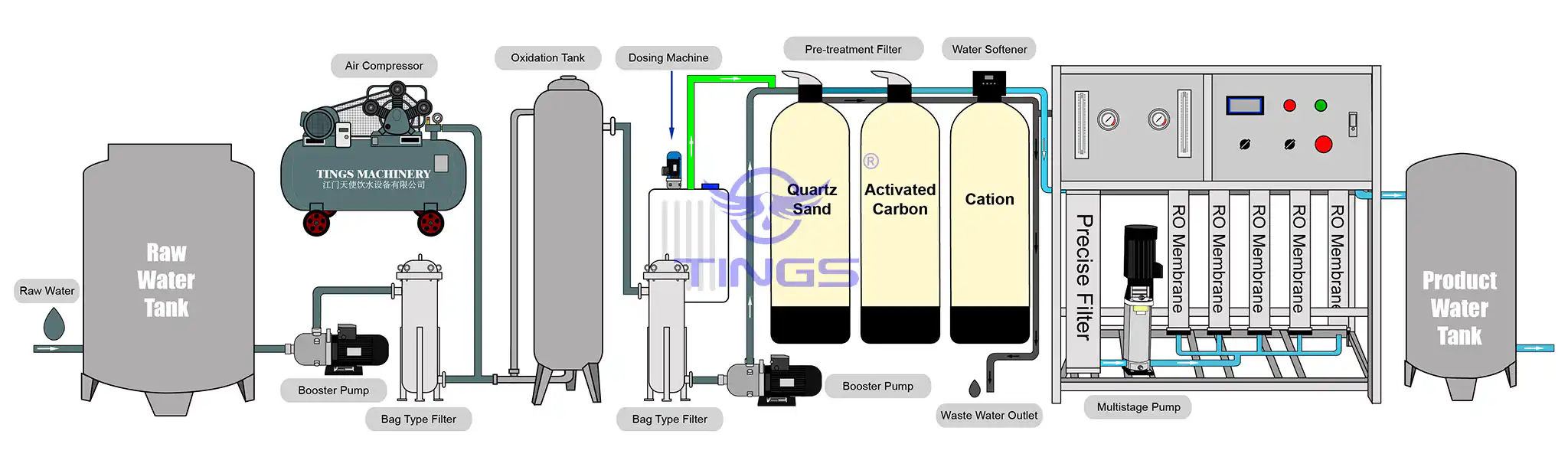

RO system with iron and manganese 1

水生产流程图

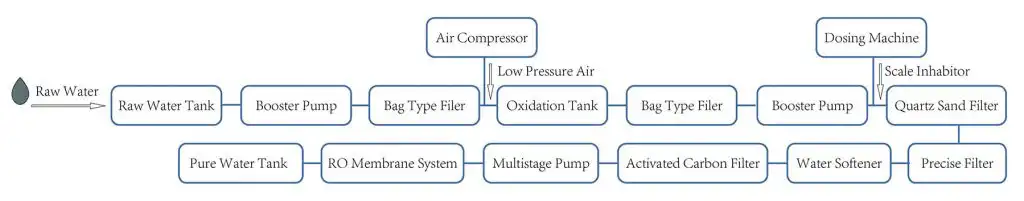

RO system with iron and manganese flow chart

流程介绍

  1. Raw water tank
    Open-type raw water tank is made of plastics or stainless steel 304.
  2. Raw water pump
    Provide the treatment system with sufficient and stable water source and pressure.
  3. Bag-type filter
    It filters the visible particle impurity substance, such as sand and mud in the water.
  4. 空气压缩机
    This device provides sufficient oxygen for the oxidation with iron and Manganese, so as to enhance the effect of oxidation.
  5. Oxidation tank
    It is designed with unique air inlet valve and spraying water valve. The full contact of oxygen and water inside the oxidation tank can make the oxidation with divalent iron and manganese ion more efficient.
  6. Bag-type filter
    The device filters the sediment and prevent it from flowing into the back-end treatment system, so as to increase the operating efficiency of the back-end treatment system, and also lower the energy consumption of it.
  7. 增压泵
    为后端处理系统提供足够的水源和水压。
  8. 加药机
    By dosing scale inhibitor, the machine can prevent the tubing and membrane system from scaling. Therefore it prolong the use period of the membrane.
  9. Manganese sand filter
    设备的过滤器的杂质的物质,并处置第二价铁和锰离子在原水。 它配备有自动控制阀,这可能排放的沉积物通过其自动反洗功能。
  10. 活性炭过滤器
    这个过滤器中移除的颜色和气味的原水,以改善水的味道。
  11. 软水器
    这个装置软化水氧化钙离子和镁离子在原水用阳离子。
  12. 精密过滤器
    过滤精确度≤5,精密过滤器可以过滤从前处理过滤器流出来的颗粒杂质,从而防止其堵塞放射投模系统,并且更有效地减少系统能耗。
  13. 多级泵
    这个装置给了稳定的供水和足够的压力的反渗透系统。
  14. 反渗透膜系统
    此系统将水中的细菌和离子杂质隔离,使其标称废水排出,并将高质量纯水送到纯水储存或用水点。

当您发询价给我们的时候,请提供以下信息:

1. 如您有水源的水质报告,请出示给我们参考。
2. 您对系统产水能力的要求是多少?1吨/小时、2吨/小时或其他更大的产能?
3. 请问成品水的用途是什么?日常用水、饮料生产、灌溉或其他用途?
(我们将根据您提出的要求制定合适的方案和成本预算供您参考。)
