果汁/茶调配系统
![Juice Mixing System 1](https://www.jmtings.com/wp-content/uploads/2021/08/Juice-Mixing-System-1.jpg)

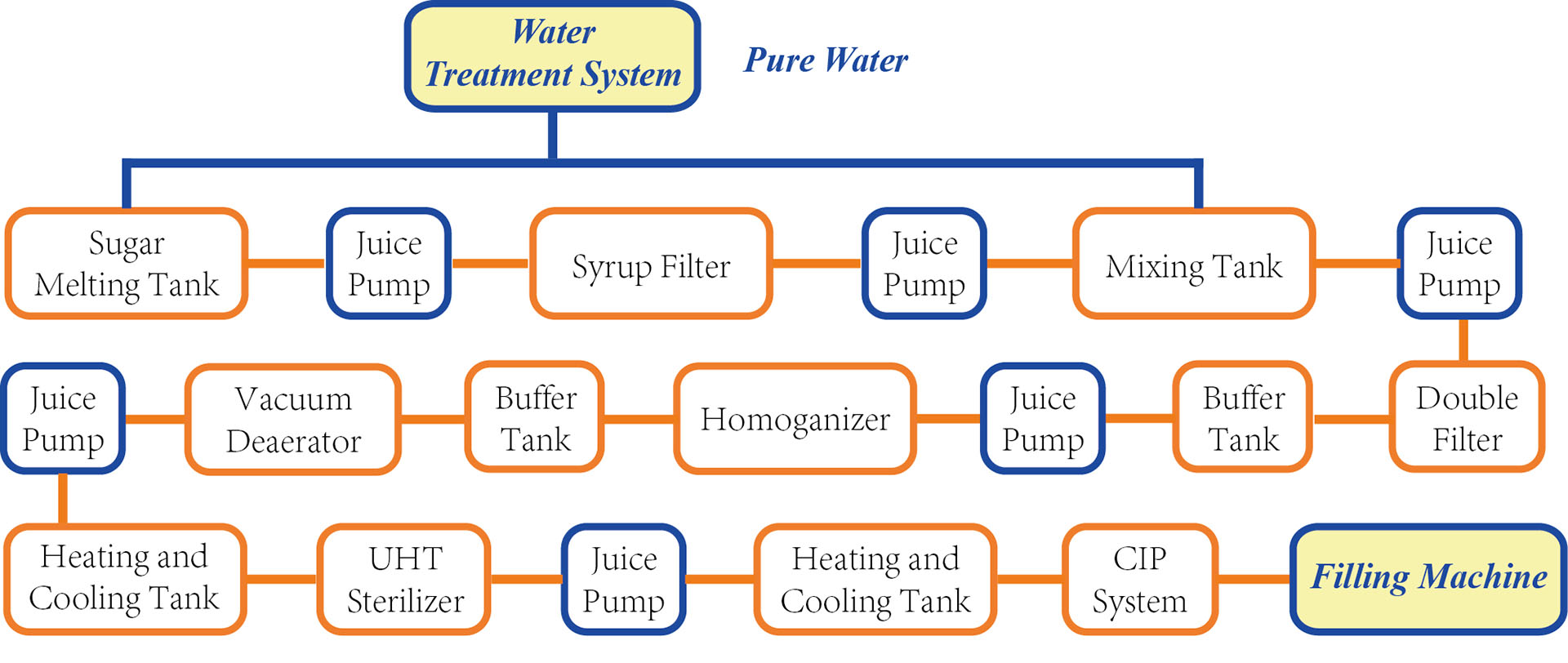

General Process Flow Chat
![果汁调配系统](https://www.jmtings.com/wp-content/uploads/2021/08/果汁调配系统.jpg)
Solution can be slightly diferent because the beverage kinds, production capacity, equipment quantity will be different. So it depands on customers’ actual situations.
Equipment and process introduction
![Sugar Melting Tank](https://www.jmtings.com/wp-content/uploads/2021/08/Sugar-Melting-Tank.jpg)
用料: 不锈钢304/316、镍含量不低于8%
功能: The device melts the sugar by heating and mixing water.
![juice pump1](https://www.jmtings.com/wp-content/uploads/2021/08/juice-pump1.jpg)
用料: Stainless Steel 304/ 316
功能: The device provides sufficient pressure for pumping juice from one device to the other.
![syrup filter 1](https://www.jmtings.com/wp-content/uploads/2021/08/syrup-filter-1.jpg)
用料: Stainless Steel 304/ 316
功能: The device filters the sugar that is not melted in the syrup from the sugar melting tank
.
![Mixing Tank 1](https://www.jmtings.com/wp-content/uploads/2021/08/Mixing-Tank-1.jpg)
用料: Stainless Steel 304/ 316
功能: Syrup, water and other materials are fully mixed in the mixing tank.
![Double filter](https://www.jmtings.com/wp-content/uploads/2021/08/Double-filter.jpg)
用料: Stainless Steel 304/ 316
功能: The Device filters any material that is not melted in the mixed juice from the mixing tank.
![Buffter tank or heat preserve tank](https://www.jmtings.com/wp-content/uploads/2021/08/Buffter-tank-or-heat-preserve-tank.jpg)
用料: Stainless Steel 304/ 316
功能: The Device buffers the pressure from the pump, making thejuice pressure goes through the connected devices evenly.
![High Pressure Homogenizor](https://www.jmtings.com/wp-content/uploads/2021/08/High-Pressure-Homogenizor.jpg)
功能: The all materials and liquid are homogenized under high pressure environment, so as to improve the mixing quality to the max.
![Vacuum Degasser 1](https://www.jmtings.com/wp-content/uploads/2021/08/Vacuum-Degasser-1.jpg)
用料: Stainless Steel 304/ 316
功能: The machine degases the homogenized juice under vacuum condition, so as to prevent juice from being oxidized and prolong the storing period of the juice.
![Heating and cooling tank](https://www.jmtings.com/wp-content/uploads/2021/08/Heating-and-cooling-tank.jpg)
用料: Stainless Steel 304/ 316
功能: The device heats or cools the water for the uses of beverage mixing, temperature control and cleaning.
![UHT Sterilizer](https://www.jmtings.com/wp-content/uploads/2021/08/UHT-Sterilizer.jpg)
用料: Stainless Steel 304/ 316
功能: This device provides high temperature to the juice for sterilizing all bacteria in it.
![CIP Cleaning System](https://www.jmtings.com/wp-content/uploads/2021/08/CIP-Cleaning-System.jpg)
用料: Stainless Steel 304/ 316
功能: The Machine is for cleaning the inner parts of all machine and tubing for the whole mixing system with detergent and high pressure water flow.
![working platform](https://www.jmtings.com/wp-content/uploads/2021/08/working-platform.jpg)
用料: Stainless Steel 304/ 316
功能: This platform is specially used for operating all equipment in the mixing system. It can be customized according to your requirement.
