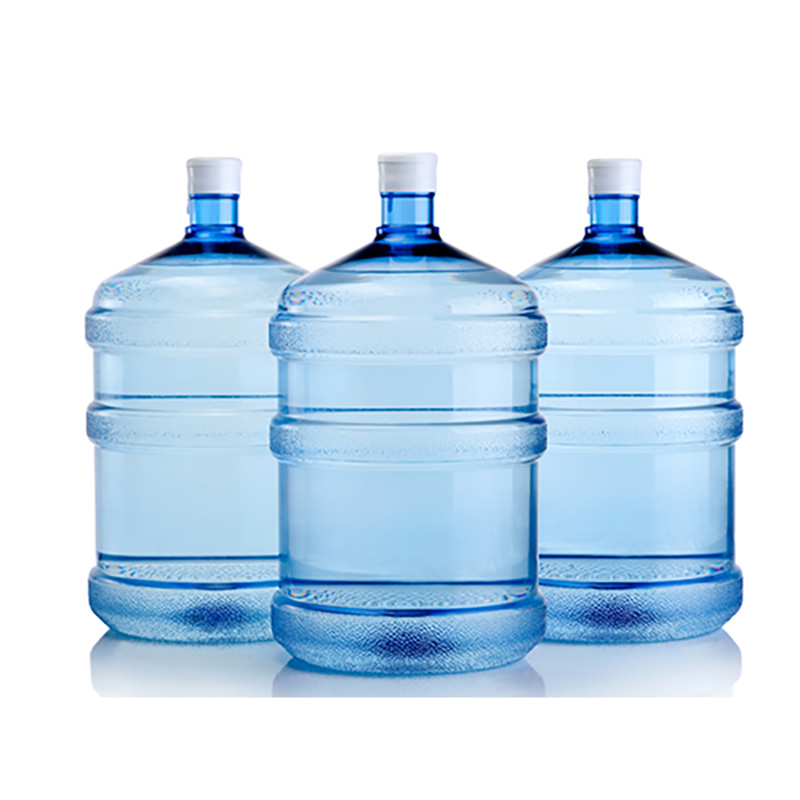

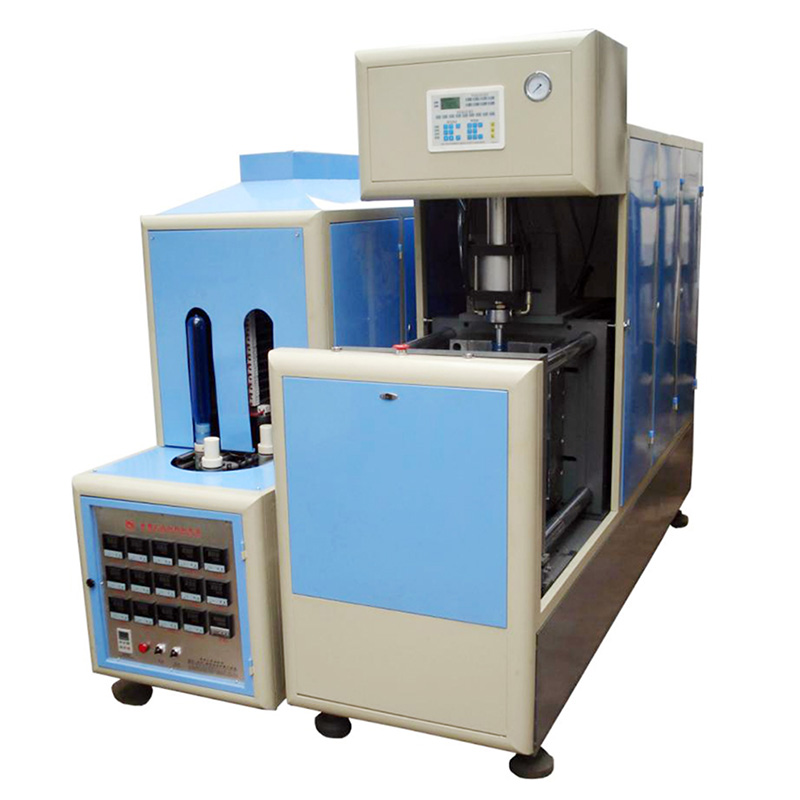

5 Gallon Bottle Molding Machine

Product Specification

Technical Process

5 Gallon Bottle Molding Machine 05

Process Description

Air pressure: 1.0m³/ 30kgs

Function: Provides the bottle molding machine enough air pressure to blow and mold the bottle.

Flow rate: 2.6m3/min

Function: Filter the compressed air to make sure

that there is no any dust inside the air.

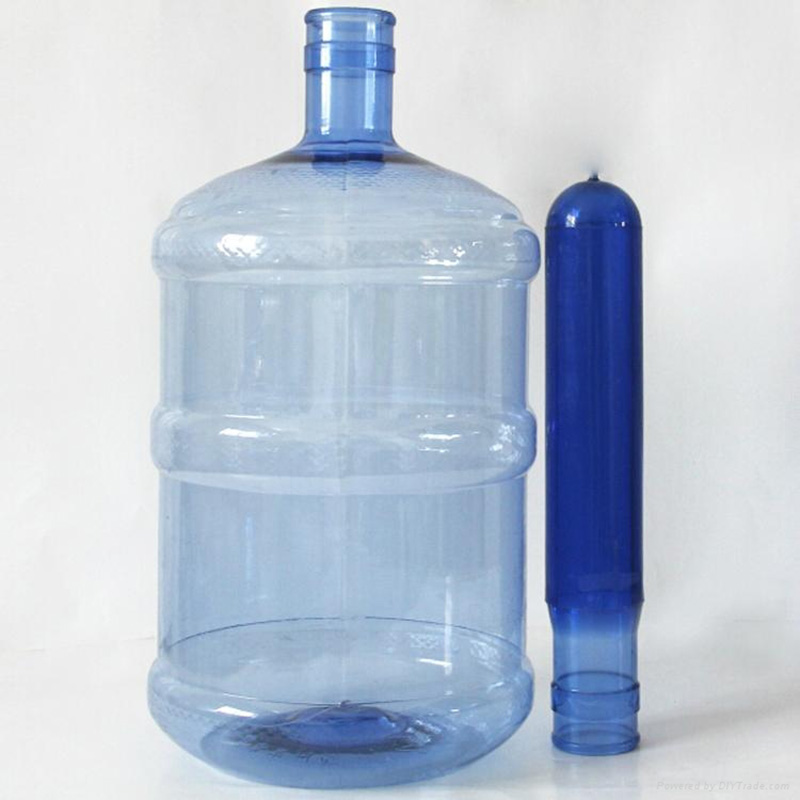

Function: PET bottle Preforms will be placed on the rotary preform heating device. Then the preforms are heated as they are sent into the heating device.

Mold Cavity: 1 cavity

Function: The heated preform is placed and fixed in the opened bottle mold. And then the mold close as we press the start button. Air will be injected into the mold and the PET bottle is formed.

Technical Data

Model

TS-Y

Capacity

60 to 90 BPH (bottles per hour)

Consumable Material

PET preform

Working Voltage

380V/50Hz (Can be customized)

General Energy Consumption

5 to 14kw

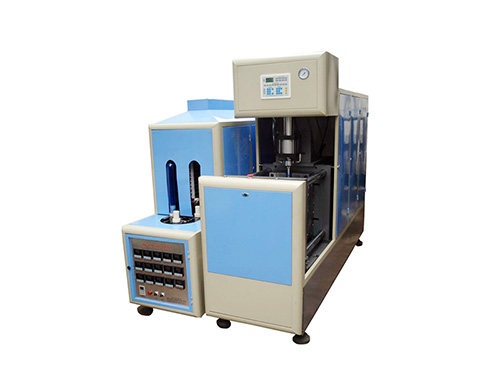

Blow Molding Machine

1 Set

Preform Heating Device

1 Set

Air compressor

1 Set, 1.0m³/30kgs

Air Filter

1 Set, 2.6m3/min

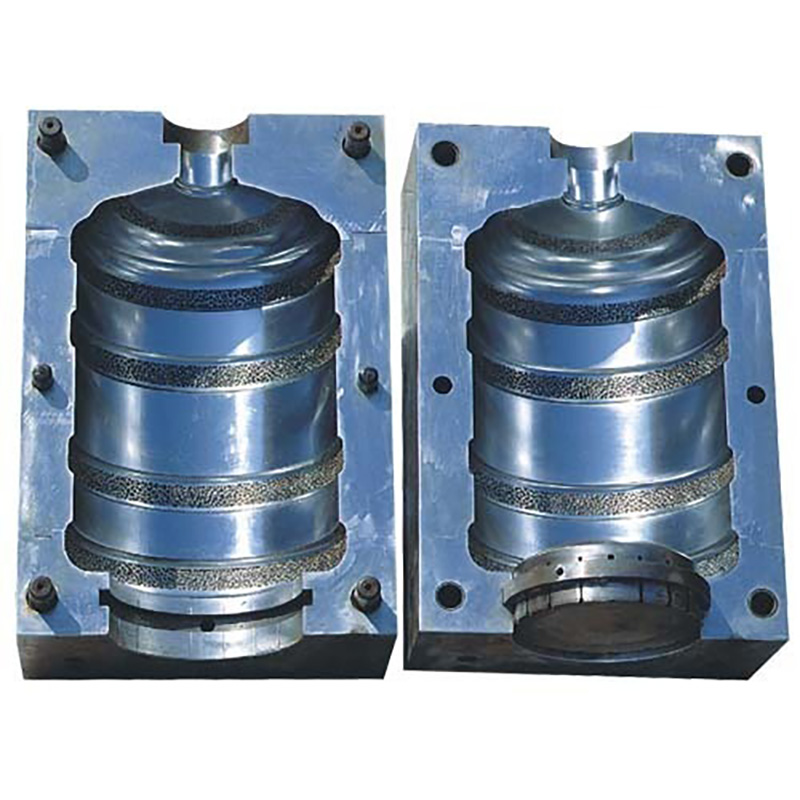

Bottle Mold

1 Set, 1 cavity



Optional Device

air tank

Air Tank

Function: Storing the high pressure air.

cooling and drying machine

Cooling and Drying Machine

2.0m3/30kgs

Functions: Cooling and drying the air before it is compressed into the molding machine.

chiller

Chiller

5HP

Functions: Cooling the molding machine by water circle, so as to prevent the molding machine from over-heated after long time working.

5 Gallon Bottle Molding Machine 06

Packing & Delivery
