Can Drinks Production Line

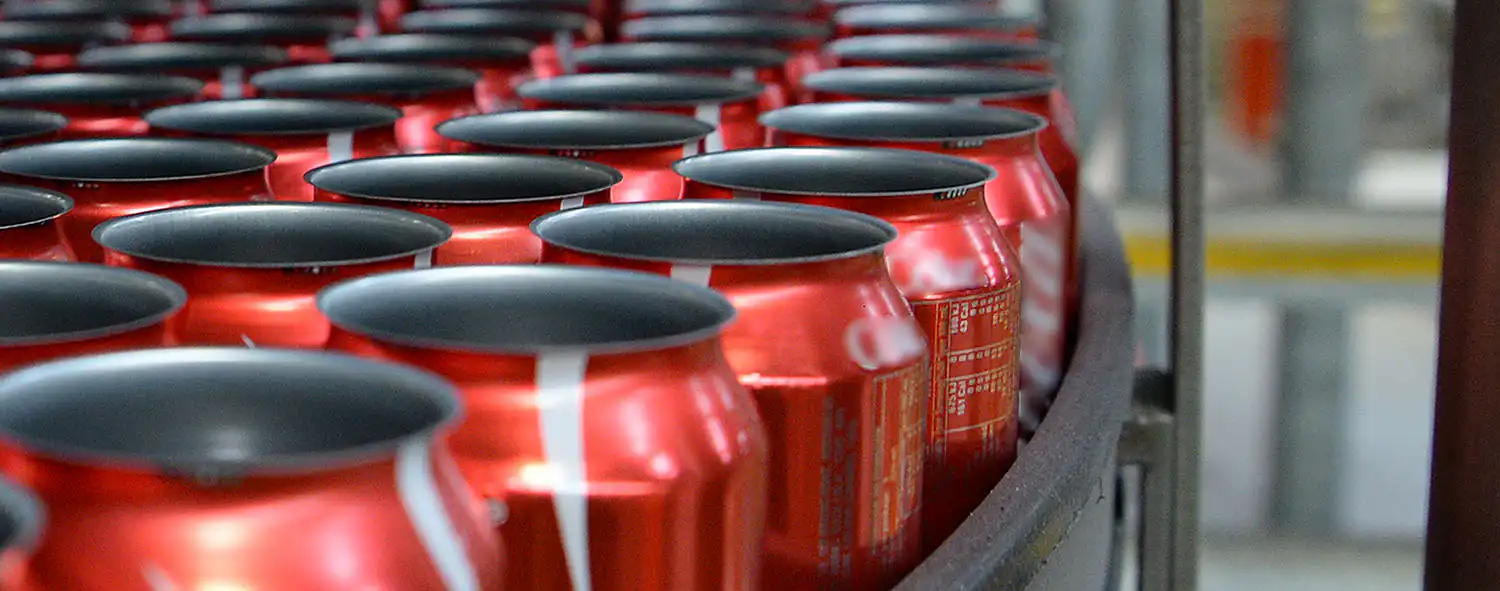

can drinks production

STEP ONE: To have a suitable water treatment system

To turn the following water sources into valuable product water:

Working Process of the System:

RO system 1
RO system 2

More information please click the button on the right →  →  →  →  →  →

STEP TWO: Tell us your requirement to get a suitable solution for all
necessary equipment of the production line

When you are sending us an inquiry, it is important to tell us the following informations:

1. Please provide us your water quality test report if available.
2. Please confirm all your can size (volume). 330ml, 500ml or other volume?
3. Please tell us about your production capacity requirement. 6000 cans per hour, 9000, 12000 or more?
(We will offer you a most suitable solution and price.)

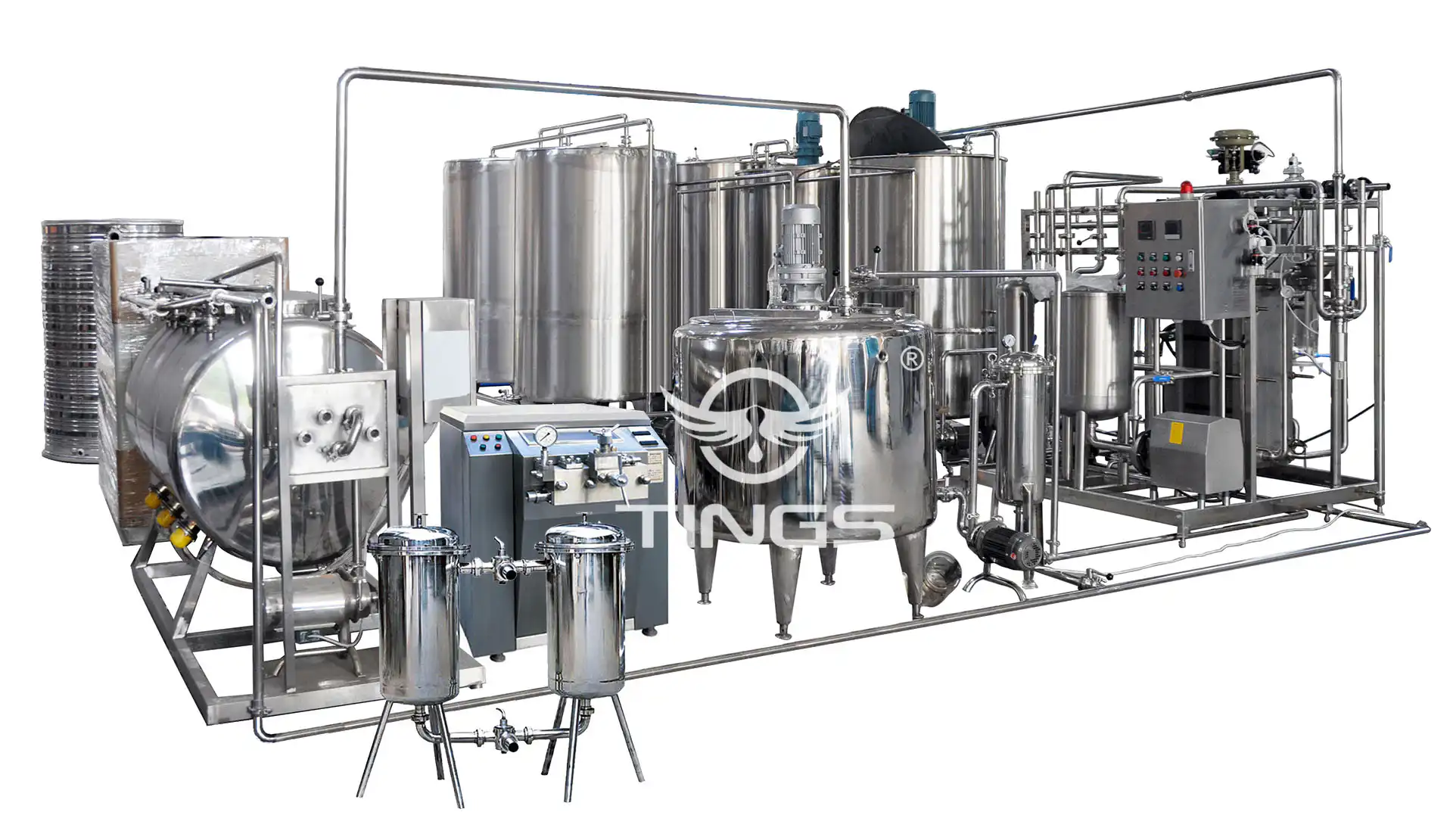

Juice Mixing System:

Juice Mixing System 1

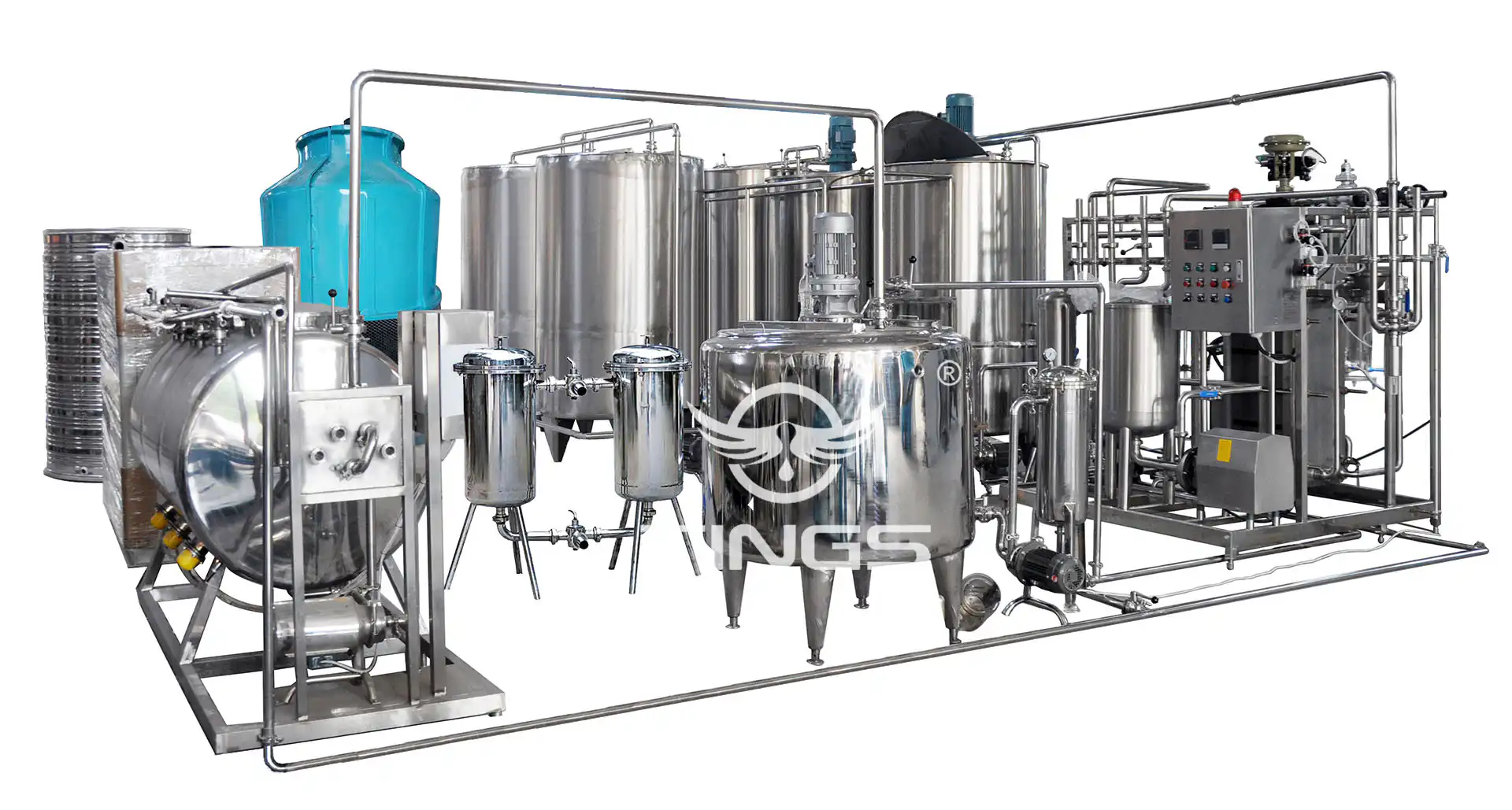

Carbonated Drinks Mixing System:

Carbonated drinks mixing system

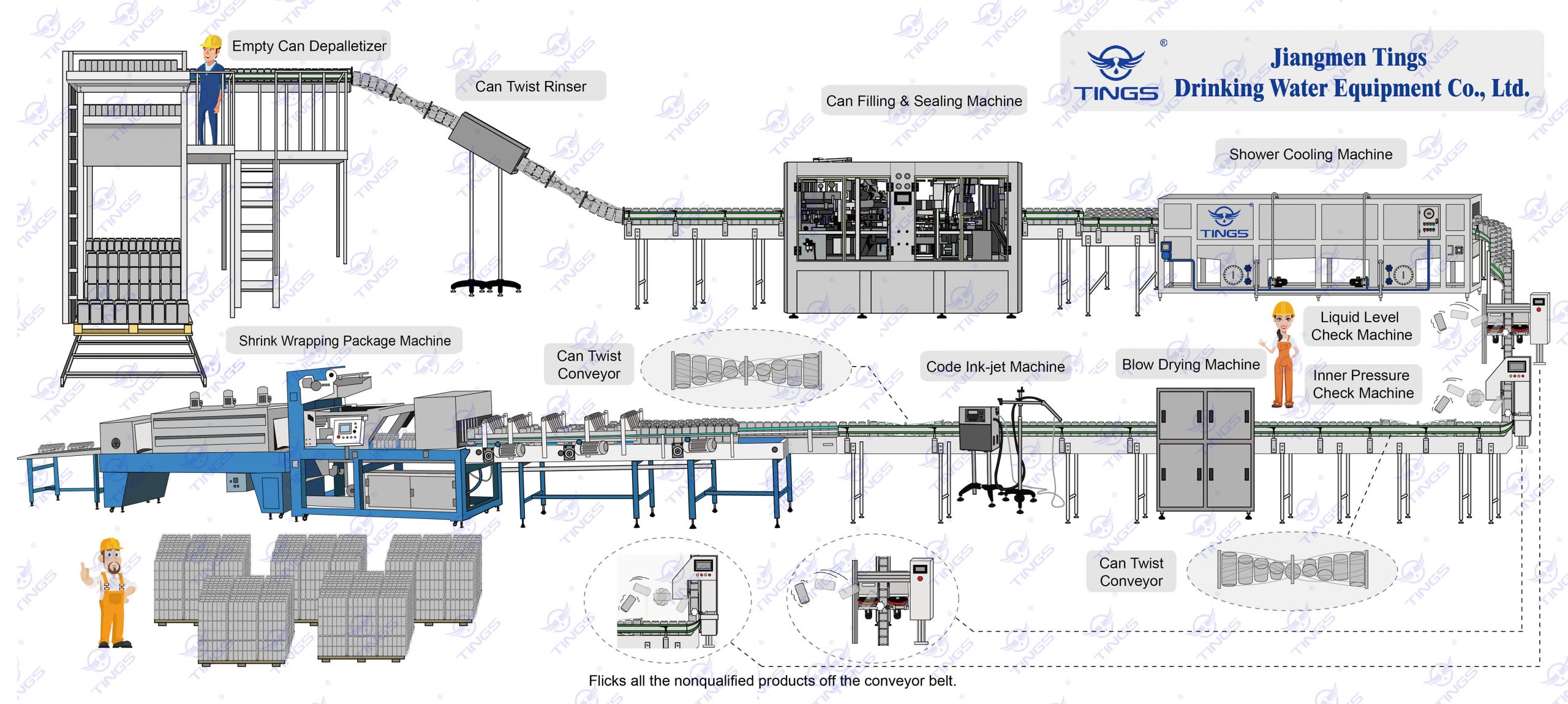

Automatic Can Soft Drinks Production Line :

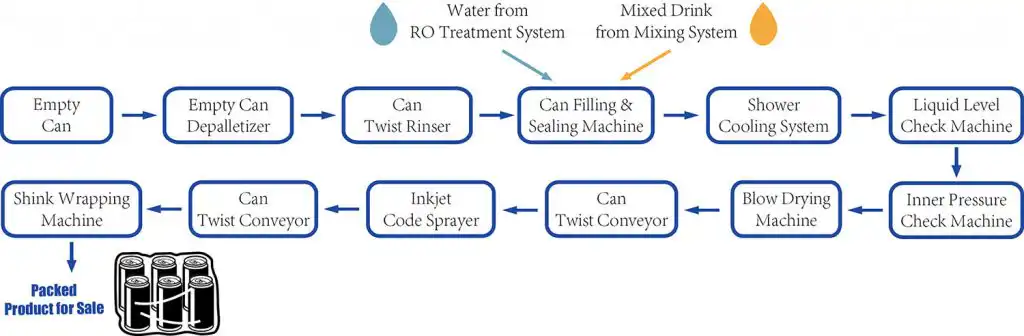

Can Drinks production process flow

    Pallets of Empty cans are placed onto the lift of the depalletizer, and are sent up to the conveying platform. Then empty cans are depalletized and conveyed to the can twist rinser.

Empty Can Depalletizer

    As the empty cans are passing through the can twist rinser, the low pressure water in it rinses the empty can, which makes no dust and particle substance is left inside the empty cans.

Can Twist Rinser

    Empty cans are filled and sealed. After that, the canned drinks will be conveyed out to the shower cooling system.

can filling and sealing

    The canned drinks will be showered with water, so that their temperature will restore normal status.

Shower cooling system

    As the canned drinks pass through the machine, they will be scanned and checked with X-ray. When any canned drink is detected nonqualified according to the preset standard parameter, the machine will flick the nonqualified one off the conveyor belt.

liquid level check machine

    As the canned drinks pass through the machine, they will be scanned and checked. When any canned drink is detected nonqualified, the machine will flick the nonqualified one off the conveyor belt.

inner pressure check machine

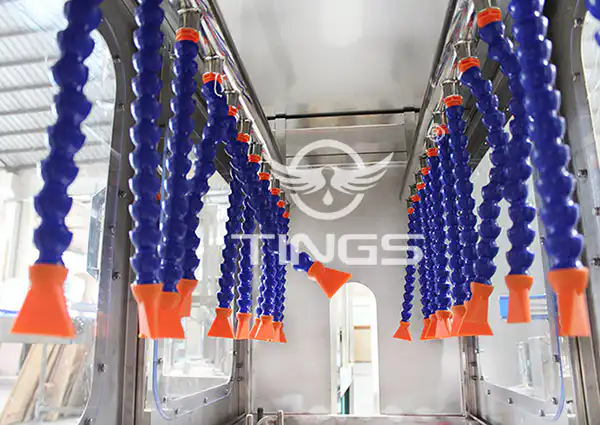

    As the canned drinks pass through the machine, they will be blowed and dried by hot wind.

Blow drying machine 1

    As the cans pass through this device, they will be twisted up side down, so that codes can be sprayed onto the bottom of the cans.

Can twister Conveyor

    As the cans passing by on the conveyor, the code sprayer will spray codes on the bottom of the cans. After coded by the machine, the cans will go through another can twist conveyor, so that the cans can be upside down again to be right standing direction.

ink jet printer

    The canned drinks will be grouped together (6 or 12 or 24 cans per pack).

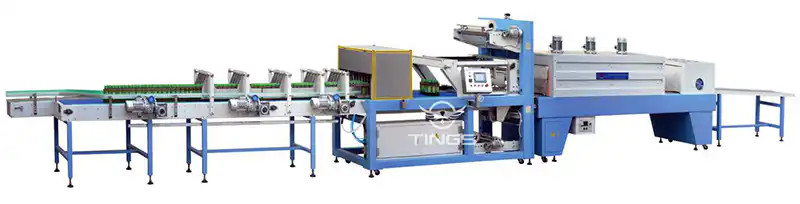

Automatic Linear Shink Wrapping Machine 2

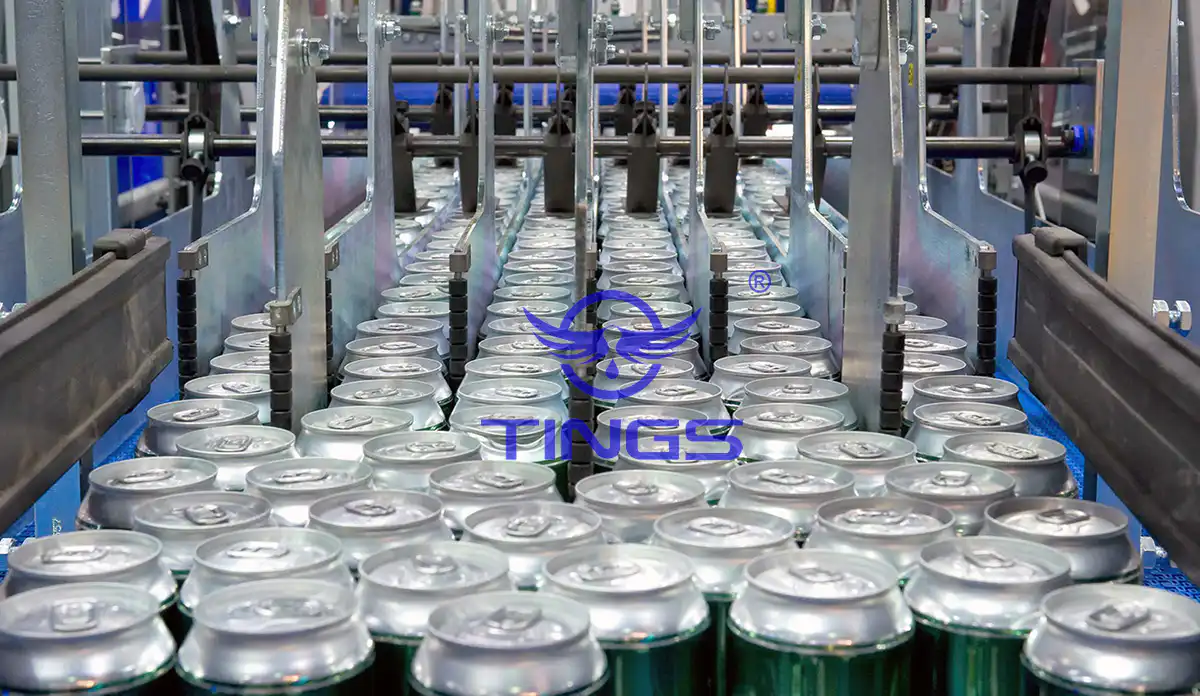

Can shrink wrapping

More Services We Provide:

Equipment layout drawing according to customer’s factory area

Equipment Layout 1 e1628214591721

Packing & Delivery

  Time is money. Don’t hesitate to contact us to get more opportunities in your market.
