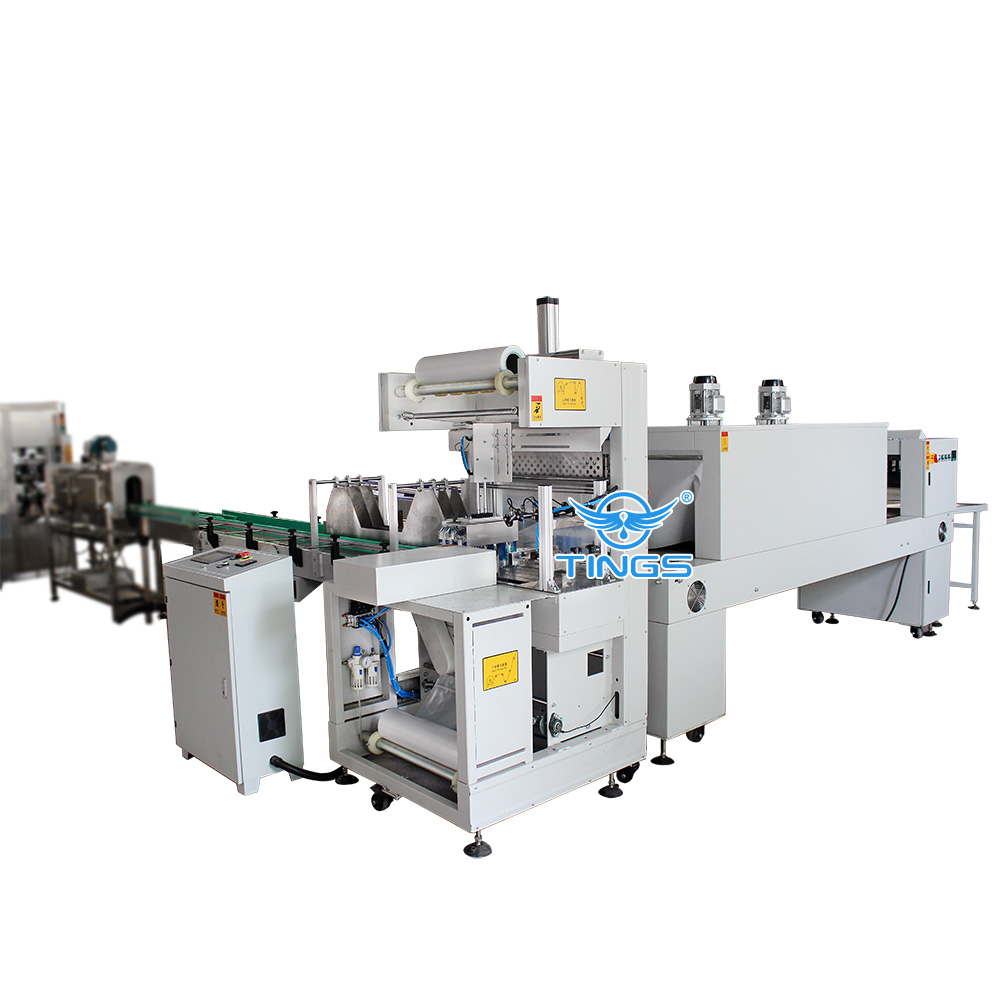

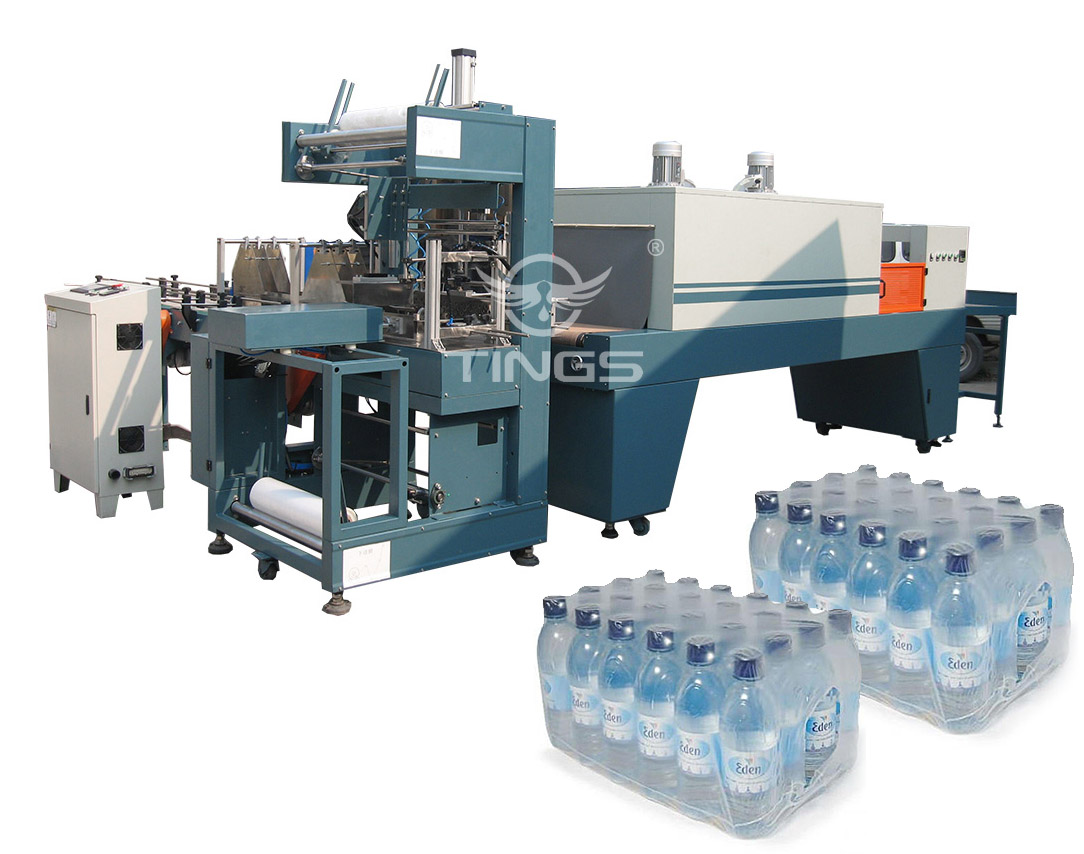

Automatic L-Shaped Shrink Wapping Machine

Automatic Shrink Wrapping Machine

Applicable to bottled, cupped or canned beverage prodcution that needs shrink wrapping packaging.

Packing form	3×4, 4×6 bottles per pack (According to bottles)
Total power Working Voltage	20kw Three-phase 380V/50Hz
Working pressure	0.6～0.8Mpa
Shrink chamber size	L×W×H=2400×650×450(mm)
Capacity	4 to 6 packs / min
Sealing& cutting temperature	190℃～230℃
Shrink temperature	150℃～260℃
Film Material	PE, PVC,POF
Width of film roll Thickness of film Film roll diameter	≤600mm 0.03 to 0.15mm ≤450mm
Working noise	≤65dB
Machine size	L×W×H=5500×3000×2100mm
Conveyer belt max width	541mm

Height of produce line (Adjustable range 150mm)

Easy to operate. Film-feeding and film-changing are fast.
Using isothermal sealing and cutting knife. The seal’s intensity is 3 times more than ordinary cooling sealing & cutting knife and the use life is 80 times more than it. The sealing & cutting time is 0.6s.
The speed regulation of transport systems is controlled by frequency variation. And the transmission action is precise and synchro .
The shrinkage chamber uses centrifugal thermal air circulation system, configuration is logical, heat insulation heat preservation, thermostat precision is high and the packing effect is better。
As the products are forwarded by conveying belt, it can automatically group the product into one package, so as to save time and enhance packing efficiency.
