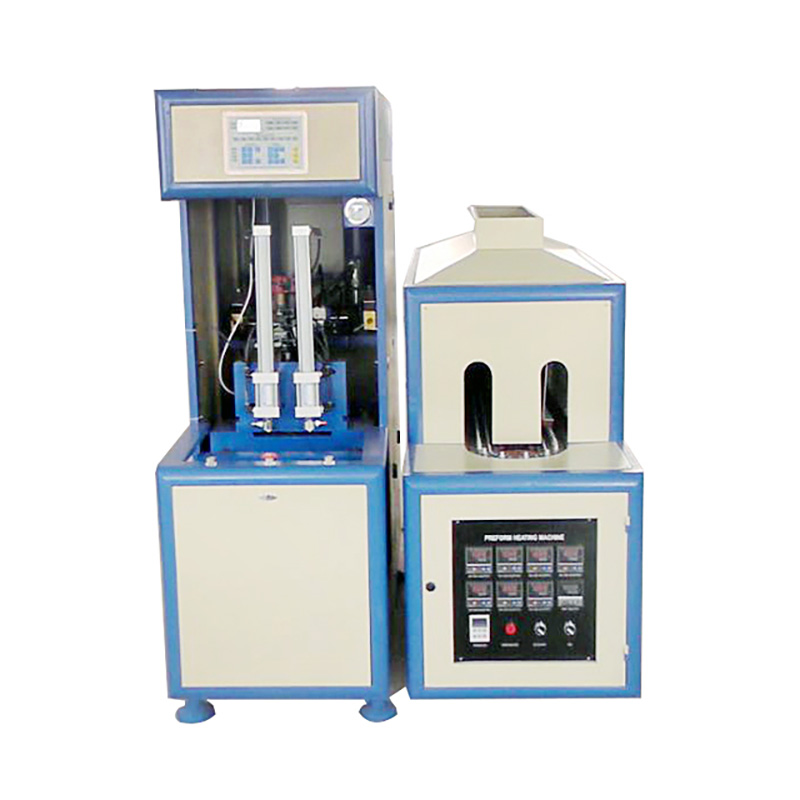

Semi-automatic Bottle Molding Machine

Product Specification

Technical Process

Standard-Configuration

Process Description

Air pressure: 1.0m³/ 30kgs

Function: Provides the bottle molding machine enough air pressure to blow and mold the bottle.

Function: Filter the compressed air to make sure

that there is no any dust inside the air.

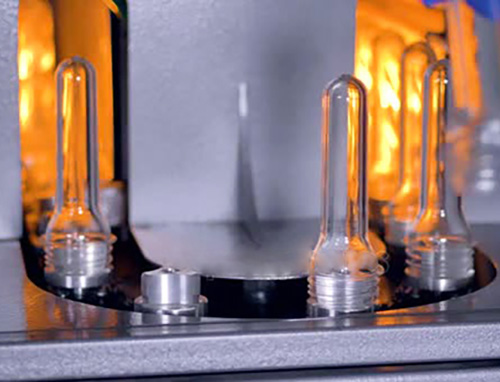

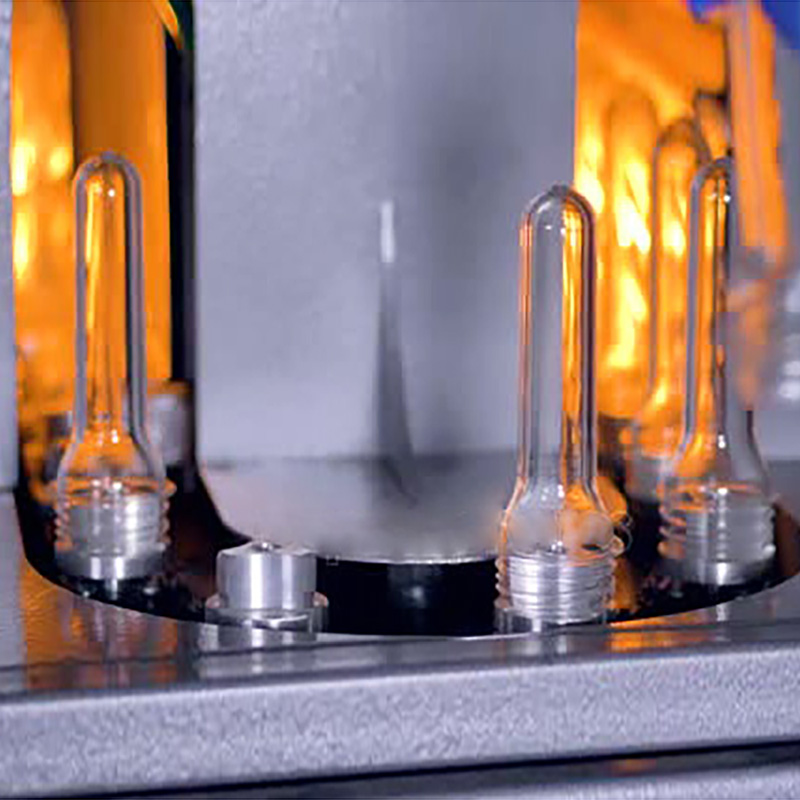

Function: PET bottle Preforms will be placed on the rotary preform heating device. Then the preforms are heated as they are sent into the heating device.

Mold Cavity: 1 cavity for 5 to 10L bottle
                          2 cavities for 200ml to 3L bottle

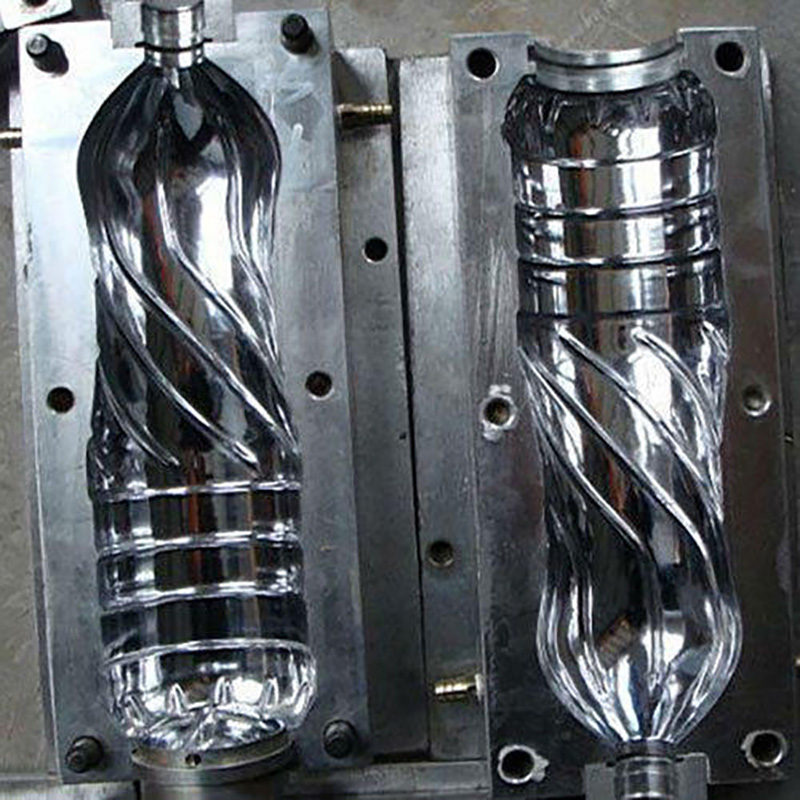

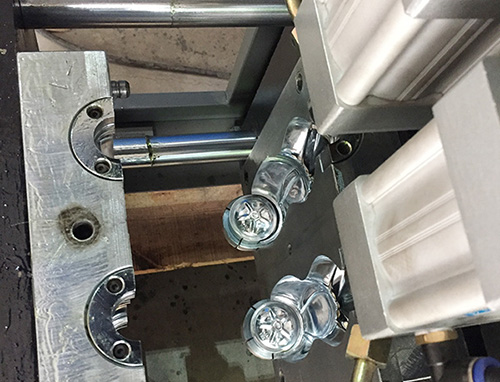

Function: The heated preform is placed and fixed in the opened bottle mold. And then the mold close as we press the start button. Air will be injected into the mold and the PET bottle is formed.

Then the bottle will be used for beverage filling production or the filling of other liquid products.

flow chart 01

Technical Data

bottle products

Model

TS-B-I

Capacity

600 to 800 BPH (bottles per hour) 200ml to 2000ml bottle

Consumable Material

PET preform

Working Voltage

380V/50Hz (Can be customized)

General Energy Consumption

5 to 14kw

Blow Molding Machine

1 Set

Preform Heating Device

1 Set

Air compressor

1 Set, 1.0m³/30kgs

Air Filter

1 Set

Bottle Mold

1 Set, 2 cavities



Model

TS-B-II

Capacity

1500 to 1800 BPH (bottles per hour) 200ml to 2000ml bottle

Consumable Material

PET preform

Working Voltage

380V/50Hz (Can be customized)

General Energy Consumption

5 to 14kw

Blow Molding Machine

2 Set

Preform Heating Device

1 Set

Air compressor

1 Set, 1.0m³/30kgs

Air Filter

1 Set

Bottle Mold

2 Set, 2 cavities



Model

TS-C

Capacity

300 to 500 BPH (bottles per hour) 3 to 10L bottle

Consumable Material

PET preform

Working Voltage

380V/50Hz (Can be customized)

General Energy Consumption

5 to 14kw

Blow Molding Machine

1 Set

Preform Heating Device

1 Set

Air compressor

1 Set, 1.0m³/30kgs

Air Filter

1 Set

Bottle Mold

1 Set



Optional Device

air tank

Air Tank

Function: Storing the high pressure air.

cooling and drying machine

Cooling and drying machine

Functions: Cooling and drying the air before it is compressed into the molding machine.

chiller 02

Chiller

Functions: Cooling the molding machine by water circle, so as to prevent the molding machine from over-heated after long time working.
