Bottled Water Factory Layout: 6 Things to Check Before Buying

Planning a bottled water factory is not just about choosing a filling machine and finding space for installation.

Before buying a bottled water production line, you should evaluate your water source, electricity supply, factory location, logistics, storage space and production flow. Buying equipment before planning the factory can lead to insufficient space, unsuitable water treatment, power problems, inefficient material movement and higher transportation costs.

A well-designed bottled water factory layout connects the entire project, from raw water and packaging materials to production, storage and delivery.

Here are nine important factors to check before purchasing your bottling equipment.

1. Confirm Your Water Source

The first question for any bottled water project is:

Where will your production water come from?

Common sources include:

Borehole or well water
Municipal water
Lake or surface water
Spring water
Other approved sources

Each source has different treatment requirements.

Borehole or Well Water

Borehole water is widely used where municipal water is limited. However, its quality depends on local geology and may include high levels of:

Hardness
Iron
Manganese
TDS
Suspended solids
Microbiological contamination

High hardness can cause scaling and reduce RO system efficiency. A water softener may therefore be required, but it should only be selected after testing the raw water.

Municipal Water

Municipal water may already have filtration and disinfection treatment, but it should not automatically be sent directly to the filling machine. Test the supply quality and consistency before designing the final treatment system.

Lake or Surface Water

Surface water usually has greater seasonal variation and may contain turbidity, organic matter, suspended solids and microorganisms. It normally requires more comprehensive pretreatment.

The correct planning sequence is:

Water source → Water analysis → Water treatment system → Factory layout

2. Test the Water Before Selecting Treatment Equipment

Knowing that your source is “borehole water” or “municipal water” is not enough. Two water sources in different locations can have completely different characteristics.

A professional raw water analysis may include:

TDS
pH
Hardness
Turbidity
Iron
Manganese
Chloride
Microbiological indicators
Other locally required parameters

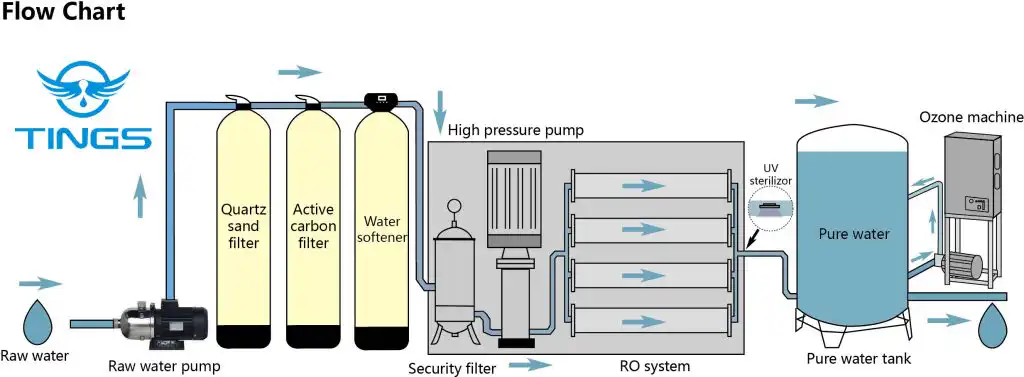

The results help determine whether you need:

Sand filter
Activated carbon filter
Water softener
Precision filter
RO system
UV sterilizer
Ozone system

Do not ask a supplier to design the treatment system based only on the type of water source. The analysis is what turns a general idea into a suitable engineering solution.

3. Confirm Industrial Electricity

Bottling equipment requires reliable industrial power. Most projects need three-phase electricity.

Before ordering equipment, confirm:

Voltage
Frequency
Three-phase power availability
Transformer capacity
Power stability
Backup power options

The complete electrical load may include:

Water treatment pumps
Bottle blowing machine
Air compressor
Air dryer
Filling machine
Labeling machine
Shrink tunnel
Film packaging machine
Conveyors
Auxiliary equipment

Do not only ask whether the factory has electricity. Confirm whether the available supply can support the complete production line under normal operating conditions.

If the local grid is unstable, plan for a generator or another suitable backup solution.

4. Choose the Factory Location Carefully

The cheapest land or the closest water source is not always the best choice.

For a bottled water project, evaluate these three factors together:

Water source + Target market + Logistics

A location with excellent water may still be expensive to operate if finished products must travel long distances to reach customers. A location near the main market may reduce distribution costs but have higher land or water expenses.

Example: Possotomé, Benin

Possotomé is located on the shore of Lake Ahémé in Benin and is associated with a natural thermal water source. Water from the area has been commercially bottled under the Possotomé brand.

This example shows how a water source can support:

Natural origin
Local identity
Mineral water positioning
Regional heritage
Brand storytelling

However, being close to a lake does not mean the lake water should be bottled directly. The actual source, treatment process and legal requirements must be confirmed through water testing and local regulations.

5. Calculate Logistics Costs

Bottled water is relatively heavy compared with its selling value, so transportation can significantly affect profitability.

Consider the complete route:

Water Source → Factory → Warehouse → Distributor → Retail Market

A factory located too far from the target market may face:

Higher fuel costs
Longer delivery times
Higher vehicle maintenance costs
More difficult distribution
Greater risk of packaging damage

Compare both sides of the calculation:

How much does it cost to bring water into production?

How much does it cost to deliver finished products to customers?

The best location depends on your target market, distribution model and overall operating costs

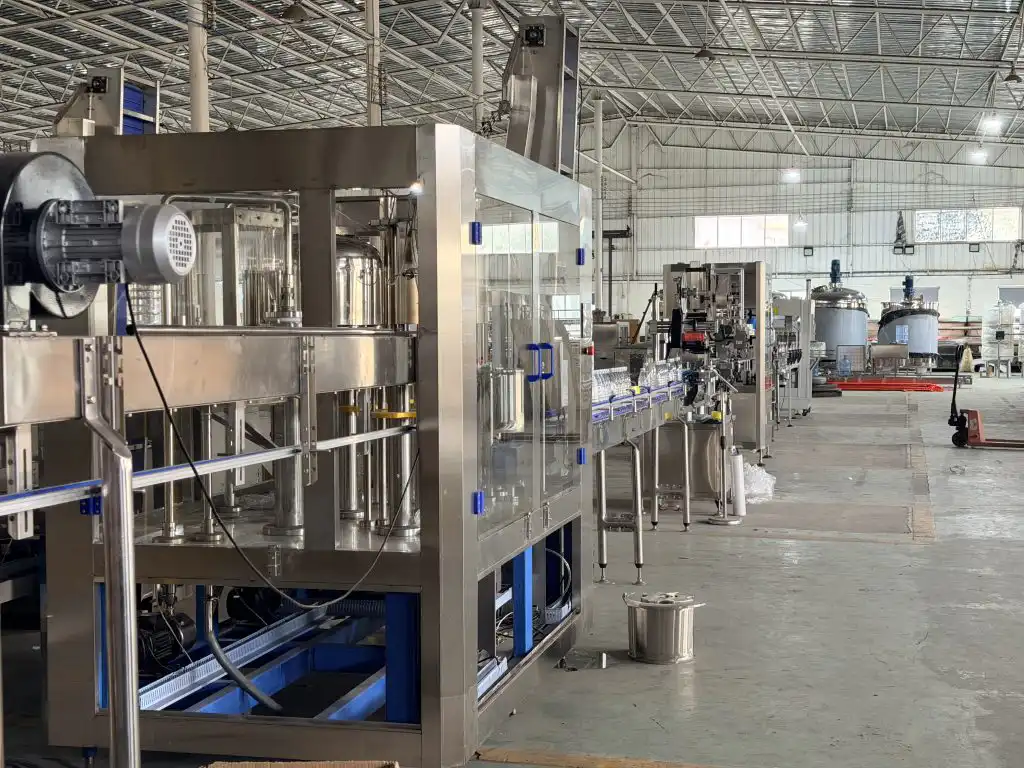

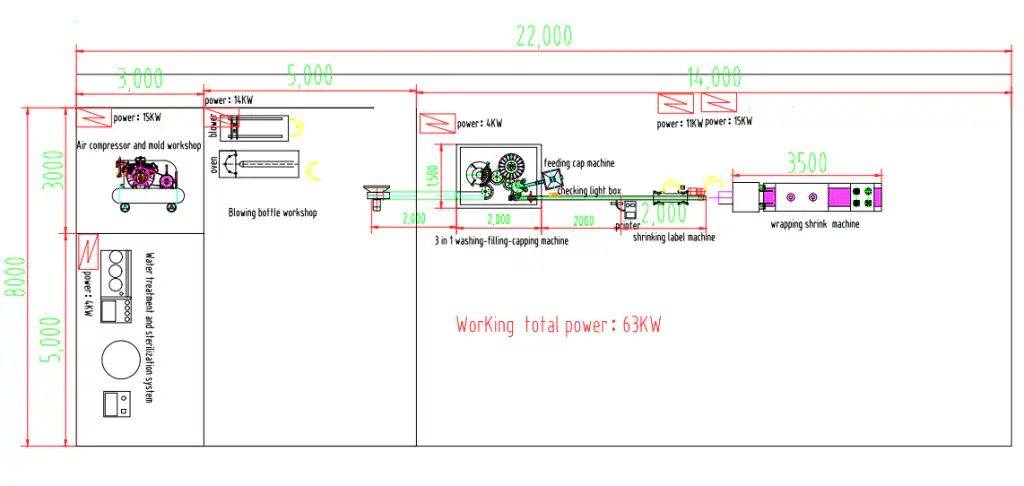

6. Design the Layout Around Production Flow

A typical PET bottled water production flow is:

Raw Water → Water Treatment → PET Preform Storage → Bottle Blowing → Air Conveyor → Rinsing, Filling and Capping → Labeling → Packaging → Finished Product Storage → Loading

The layout should follow this sequence as closely as possible.

The main principle is:

Materials should move forward, not backward.

A good layout reduces:

Unnecessary movement
Material handling
Production interruptions
Safety risks
Maintenance difficulties
Bottlenecks

The factory layout should therefore be planned together with the production line configuration.

A Bottled Water Factory Should Be Planned as One System

A successful bottled water project is not simply a collection of machines.

The water source affects the treatment system. The treatment system affects production capacity and utilities. Production capacity affects equipment selection. Equipment selection affects the factory layout. The factory location affects logistics and delivery costs.

Planning these factors together can help you avoid costly changes after equipment has been ordered.

Need Help Planning Your Bottled Water Factory?

If you already have a factory location, water source or preliminary project plan, evaluate the project before purchasing equipment.

TINGS can help assess your production capacity, water treatment requirements, equipment configuration and bottled water factory layout according to your project conditions.

The right production line starts with the right factory plan.

Contact TINGS to discuss your bottled water project and factory layout.
