JIANGMEN TINGS DRINKING WATER EQUIPMENT CO., LTD.

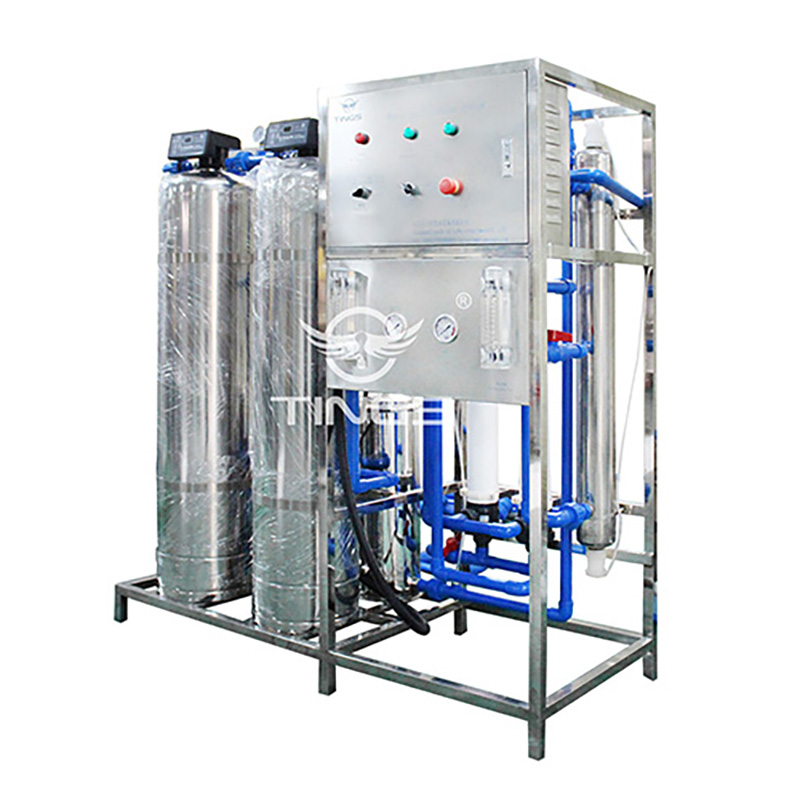

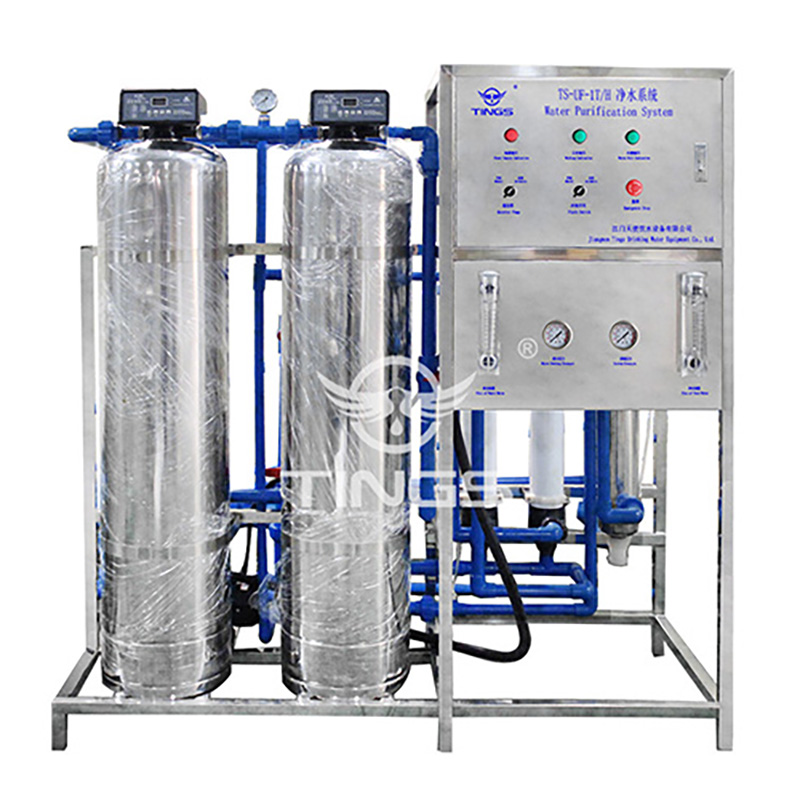

1000LPH UF Plant

Product Specification

Technical Process

UF 1000LPH UF Plant
UF Plant 1000LPH UF Plant

Process Description

The device provides stable water source and pressure to the back-end treatment system.

prefilter 1000LPH UF Plant

Sand Filter

The device filters the impurity substance and disposes of the divalent iron and manganese ion in the raw water. It is equipped with automatic control valve, which can discharge the sediment by its automatic back washing function.

Activated Carbon Filter

This filter removes the colors and smells of the raw water to improve the water’s flavor.

precise filter

Precise filter

With the filtering accuracy of ≤5μm, the precise filter can filter the particle impurity substance in the raw water from the front-end filters. It can prevent impurity substance from flowing into and thus blocking up the reverse osmosis membrane system, so as to decrease power consumption more effectively.

UF1Tmembrane 1000LPH UF Plant

 UF membrane systemsystem

This device filters the substances such as bacteria and ions in the water.

And the quality of product water after filtration will be much higher than that of standard daily drinking water.

Technical Data

Model

TS-UF-1T

Capacity

1000L/H (25℃)

General Power Consumption

0.75kw

Working Voltage

380V/50Hz (Can be customized)

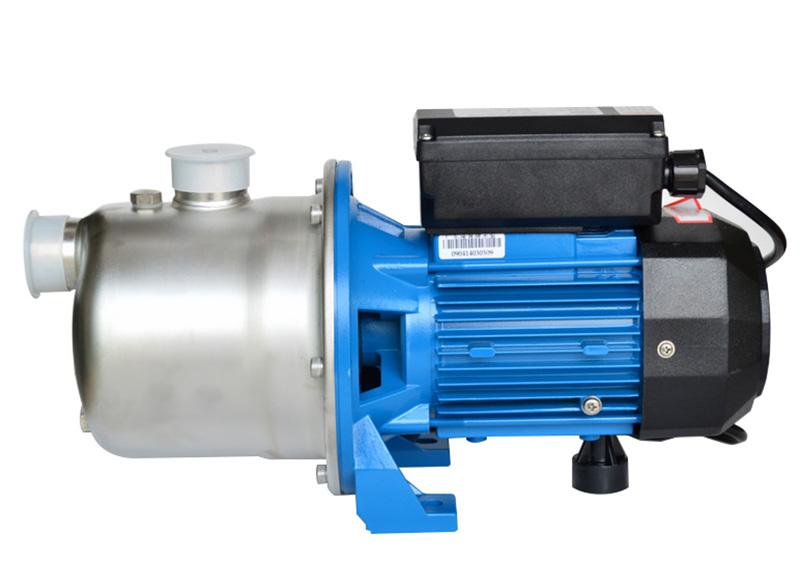

Booster pump

BLC70/075 type, 0.75kw, 1set

FRP Quartz sand filter

Ф300X1370mm, 1 set, Quartz sand 100kgs

FRP Activated carbon filter

Ф300X1370mm, 1 set, Activated carbon 50kgs

Precise filter

Ф195×500mm, 1 set, stainless steel 304

UF membranes

2pcs

Functions of The Machine

More Capacity Choices for The Model

No.

Model Number

Capacity

1

TS-UF-1T

1000L/H (1M3)

2

TS-UF-2T

2000L/H (2M3)

3

TS-UF-3T

3000L/H (3M3)

4

TS-UF-4T

4000L/H (4M3)

5

TS-UF-5T

5000L/H (5M3)

6

TS-UF-6T

6000L/H (6M3)

7

TS-UF-15T

15000L/H (15M3)



Optional Device

Dosing Machine

Dosing Machine

Function:

  • By dosing flocculant into the water, it enhance the sediment of the unwanted impurities and colloidal matters, etc.
  • By dosing scale inhibitor into the water, it prevents the Calcium and magnesium ion from forming scale, so as to protect the membrane filtration system.
  • By dosing PH adjusting agent, it changes the water PH value into the ideal result
UV Sterilizing device

UV Sterilizing device

Main Material: stainless steel 304

Function: sterilize the bacteria in the water

Capacity: 2000L per hour

Stainless Steel Water Tank

Stainless Steel Water Tank

Material: stainless steel 304

Function: Raw water or product water storing

It is better to connect with a ozone machine to sterilize the bacteria in the water.

Volume: 1000L to 5000L or more

Tings Ozone Machine

Tings Ozone Machine

Material: stainless steel 304

Ozone output: 3 to 32g/H

Function: to produce ozone and pump it to the water tank or ozone mixing tower, so that the ozone can fully sterilize the disinfect the water in the mixing circulation process.

Ozone Mixing Tower

Ozone Mixing Tower

Material: stainless steel 304

Function: fully mixing of the ozone and water, making it the best ozone sterilizing effect

Application

Mineral water industry

Mineral Water Production Industry

daily use water 1000LPH UF Plant - 副本

 Daily Use

Irrigation

Irrigation

papermaking industry

Paper-making Industry

iron making industry 1000LPH UF Plant

Iron-making Industry

8T RO Plant

Pharmaceutical Industry

tap water 1000LPH UF Plant

Tap Water

Spring on Castle Creek

Surface Water

ground water 1000LPH UF Plant

Ground Water

Packing & Delivery
