Material: stainless steel 304/316, nickel not less than 8%
Working Way: rotary rinsing

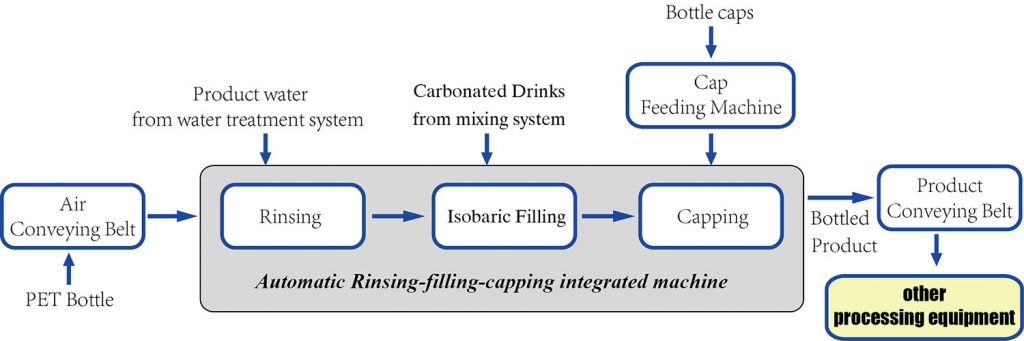

Function: After the PET bottle have been conveyed into the filling machine, rinsing pliers will carry and fix the bottles to the rinsing nozzles. Then after the rinsing of spraying water from the high pressure rinsing nozzles, the bottles are ready to be sent to the filling part.
Material: stainless steel 304/316, nickel not less than 8%
Function: After the PET bottle have been rinsed, the rotary transmission plate between the rinsing and filling parts will transmit the bottles to the filling part. Then the bottle will be fixed and fully filled precisely in equal volume of carbonated drinks by high pressure spraying filling nozzles. And then the filled bottles will be transmitted to the capping part.

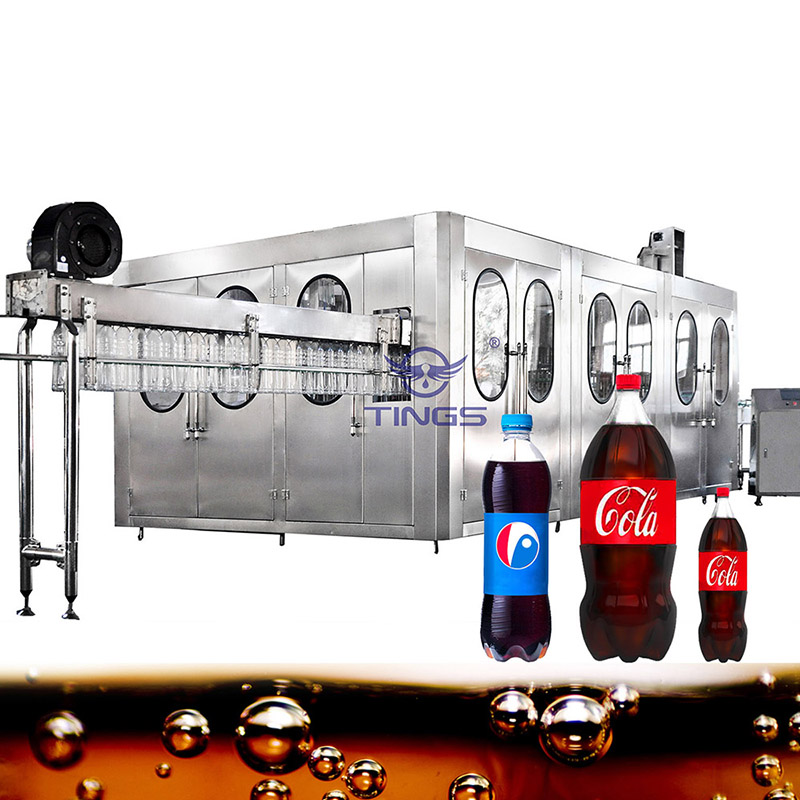

Model | XGF32-32-10 |
Capacity | 12000 to 13000 BPH (bottles per hour) subject to 500ml bottle |
Suitable Bottle Volume | 200ml to 2000ml |
Working Voltage | 380V/50Hz (Can be customized) |
Filling Precision | ≤ ±5mm (liquid level) |
Filling Method | normal pressure and temperature |
PET Bottle Specification | bottle diameter:φ50-φ100mm, Height 150-320mm |
Suitable Cap Type | plastic screw cap |
Water Pressure For rinsing bottle | 0.3Mpa |
Water Consumption For Washing Bottle | 500L |
Gas Source Pressure | 0.7Mpa |
Gas Consumption | 1m³/min |
No. | Model Number | Capacity |
1 | XGF8-8-3 | 2000 to 2500 BPH |
2 | XGF14-12-5 | 3000 to 4500 BPH |
3 | XGF18-18-6 | 6000 to 8000 BPH |
4 | XGF24-24-8 | 10000 to 11000 BPH |
5 | XGF32-32-10 | 12000 to 13000 BPH |
6 | XGF40-40-10 | 15000 to 16000 BPH |
7 | XGF50-50-12 | 20000 to 22000 BPH |
Elevator cap feeding machine Main Material: stainless steel 304/316, nickel not less than 8% Function: Feeding the bottle caps automatically and precisely with right direction. | |
Cap Washing & sterilizing device Main Material: stainless steel 304/316, nickel not less than 8% Function: As the Elevator cap feeding machine conveys the bottle caps up and the caps pass through the cap washing and sterilizing device. Then the device will wash and sterilize the caps with water who has been mixed with Ozone. |
