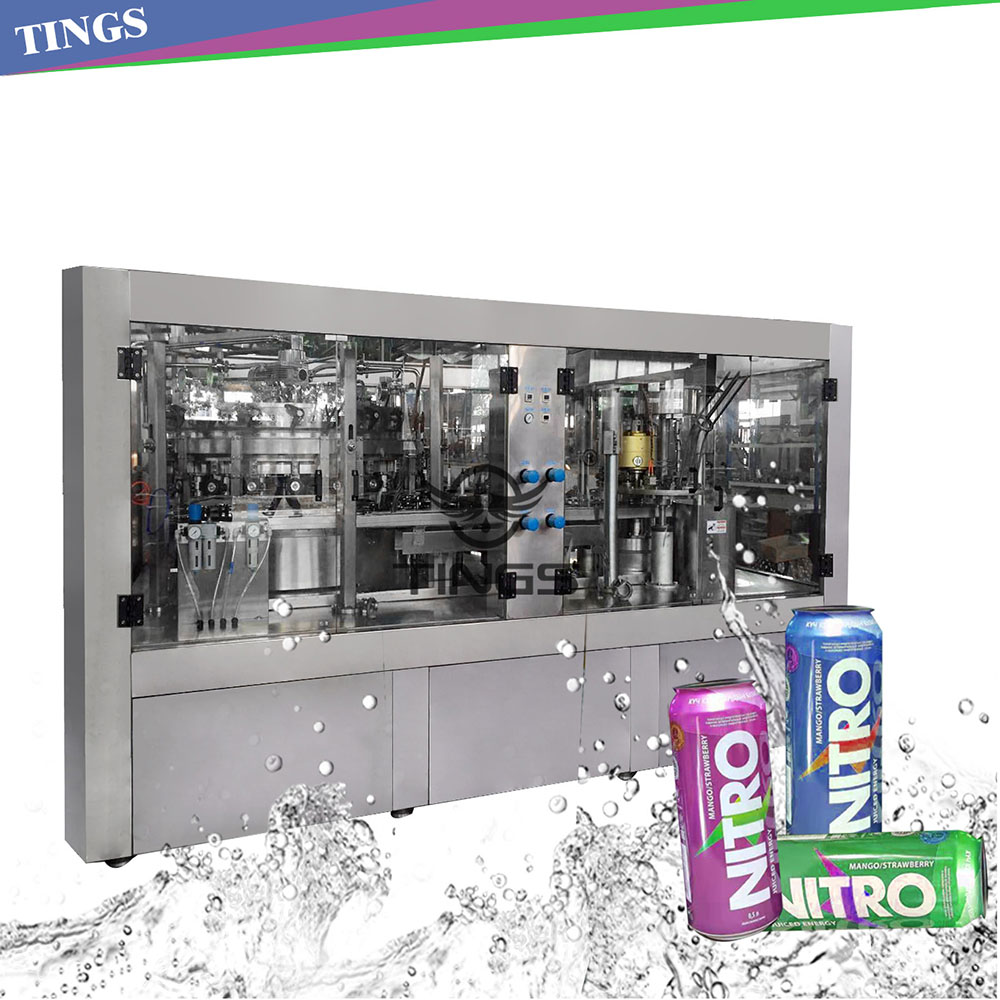

150 Cans Per Minute Automatic Canned Soft Drinks Filling Sealing Machine

150 Cans Per Minute Automatic Canned Soft Drinks Filling Sealing Machine

Model No.: XW20-4Q

Product Specification

Technical Process

Can Drinks fill sealing process flow

Process Description

Material: stainless steel 304/316, nickel not less than 8%
Function: Automatic conveying, filling, trasmiting and sealing. High filling and sealing accuracy.

Main Material: stainless steel 304/316, nickel not less than 8%
Function: The product conveying belt conveys the filled and sealed canned drinks out of the filling machine and transmit them to other processing equipment of the production line.

Technical Data

Model XW20-4Q
Capacity 150 cans per minute
Suitable Can Volume 330ml, 450ml or customized volume
Working Voltage 380V/50Hz (Can be customized)
Filling Precision ≤ ±5mm (liquid level)
Filling Method normal pressure and temperature, or isobaric and 80 to 85℃
Gas Source Pressure 0.7Mpa
Gas Consumption 1m³/min

Main Features of The Machine

More Capacity Choices for The Model

No.Model NumberCapacity
1XW12-4150 cans/min (for water or juice filling)
2XW18-4250 cans/min (for water or juice filling)
3XW24-6300 cans/min (for water or juice filling)
4XW36-6400 cans/min (for water or juice filling)
5XW20-4Q150 cans/min (for carbonated drinks filling)
6XW24-6Q200 cans/min (for carbonated drinks filling)
7XW30-6Q260 cans/min (for carbonated drinks filling)

Packing & Delivery
