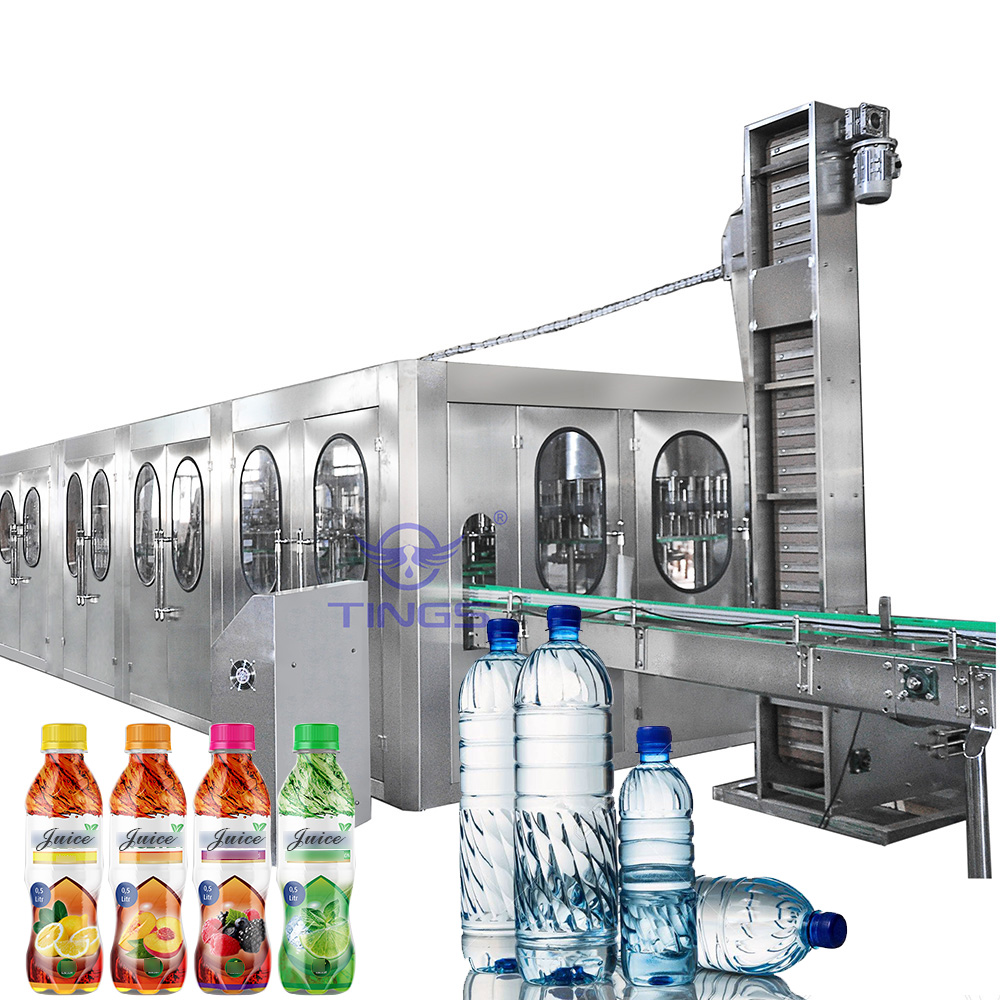

20000 to 22000BPH Automatic Bottle Juice Filling Machine

Product Specification

Technical Process

瓶装果汁灌装工作机流程

Process Description

Material: stainless steel 304/316, nickel not less than 8%
Function: The device conveys the PET bottle to the filling machine with blowing power from fan.

Material: stainless steel 304/316, nickel not less than 8%
Working Way: rotary rinsing
Function: After the PET bottle have been conveyed into the filling machine, rinsing pliers will carry and fix the bottles to the rinsing nozzles. Then after the rinsing of spraying water from the high pressure rinsing nozzles, the bottles are ready to be sent to the filling part.

Material: stainless steel 304/316, nickel not less than 8%
Function: After the PET bottle have been rinsed, the rotary transmission plate between the rinsing and filling parts will transmit the bottles to the filling part. Then the bottle will be fixed and fully filled precisely in equal volume of juice by high pressure spraying filling nozzles. And then the filled bottles will be transmitted to the capping part.

Material: stainless steel 304/316, nickel not less than 8%

Function: The filled bottles are capped by the rotating capping head. Then the finished products will be conveyed out of the filling machine by the product conveying belt.



Material: stainless steel 304/316, nickel not less than 8%
Function: This device feeds caps into the capping part of the filling machine

Main Material: stainless steel 304/316, nickel not less than 8%
Function: The product conveying belt conveys the filled and capped bottle out of the filling machine and transmit them to other processing equipment of the production line.

Main Material: stainless steel 304/316, nickel not less than 8%
Function: help to check if there is any impurity in the bottled juice products, when the products pass by as they are being transmitted out of the filling machine.

Imported touch screen PLC famous brand ensures stable and high efficient working, easy operating as well as durability of the filling machine.

Feeding the bottle caps automatically and precisely with right direction.

Technical Data

Model

XGF50-50-12

Capacity

20000 to 22000 BPH (bottles per hour) subject to 500ml bottle

Suitable Bottle Volume

200ml to 2000ml

Working Voltage

380V/50Hz (Can be customized)

Filling Precision

≤ ±5mm (liquid level)

Filling Method

normal pressure and temperature

PET Bottle Specification

bottle diameter:φ50-φ100mm, Height 150-320mm

Suitable Cap Type

plastic screw cap

Water Pressure For rinsing bottle

0.3Mpa

Water Consumption For Washing Bottle

1000L

Gas Source Pressure

0.7Mpa

Gas Consumption

1m³/min

Main Features of The Machine

More Capacity Choices for The Model

No.

Model Number

Capacity

1

XGF8-8-3

2000 to 2500 BPH

2

XGF14-12-5

3000 to 4500 BPH

3

XGF18-18-6

6000 to 8000 BPH

4

XGF24-24-8

10000 to 11000 BPH

5

XGF32-32-10

12000 to 13000 BPH

6

XGF40-40-10

15000 to 16000 BPH

7

XGF50-50-12

20000 to 22000 BPH

Optional Device

cap washing device Cap Washing & sterilizing device Main Material: stainless steel 304/316, nickel not less than 8% Function: As the Elevator cap feeding machine conveys the bottle caps up and the caps pass through the cap washing and sterilizing device. Then the device will wash and sterilize the caps with water who has been mixed with Ozone.

The whole Device Diagram (just for reference)

2000 to 3000BPH Automatic Bottled Water Rinsing Filling Capping03

Packing & Delivery
