JIANGMEN TINGS DRINKING WATER EQUIPMENT CO., LTD.

Tings labeling machine

Automatic Hot Melt Glue Labeling Machine

Model No.: TS-HML6000

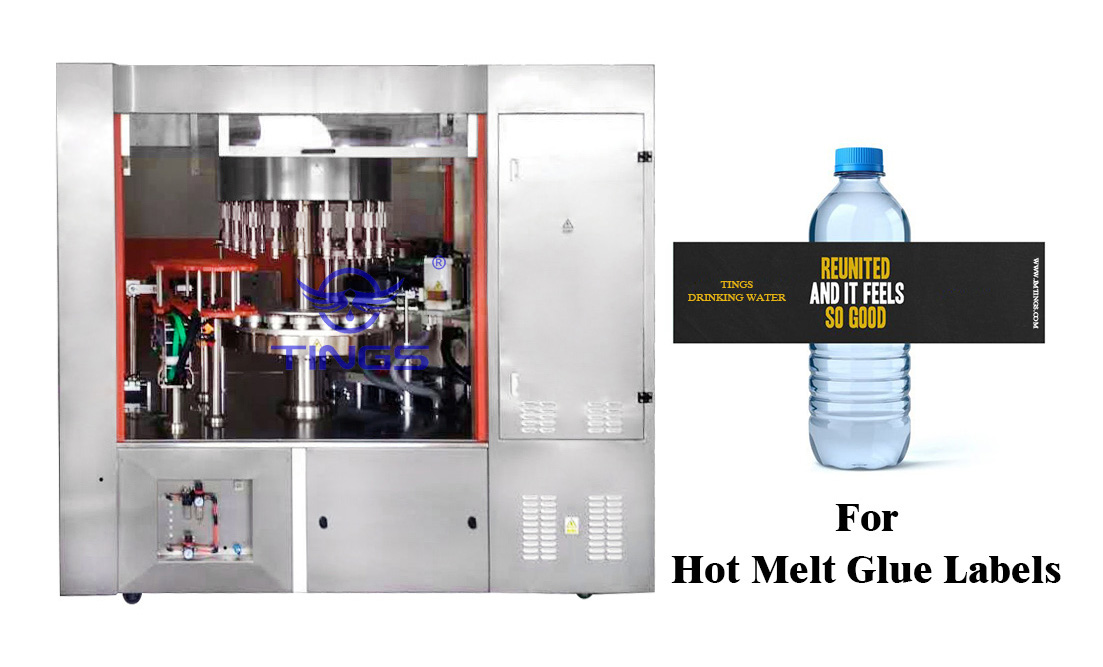

Hot melt glue rotary labeling machine

Specification

Technical parameters

Length of the equipment

3 meters or more (3m conveyor belt, length can be customized)

Wildth of the equipment

2.5 meters

Machine weight

about 2000kgs

Production Capacity

6000 bottles/hour

Suitable label type

opp label, paper-plastic composite film label, paper label

Maximum label size

500×150mm (L×W), Diameter: 600mm

Paper core diameter

152mm

Conveyor speed

Maximum speed of labels feeding

30m/min (adjustable)

100 meters per minute

Total Power

Working Voltage

8kw

3 phase (to be customized)

Gluing temperature

120~160℃

Labeling accuracy

± 1mm

Labeling workstation

6 per cycle

The quantity of labeling mold: 1 set (for only one size of bottle, each mold contains infeed worm, infeed starwheel, discharge starwheel, position bottle and so on)

Process Flow

Infeed bottle → pre-position →label cutting → gluing → labeling→labeled by pressing out → finish
