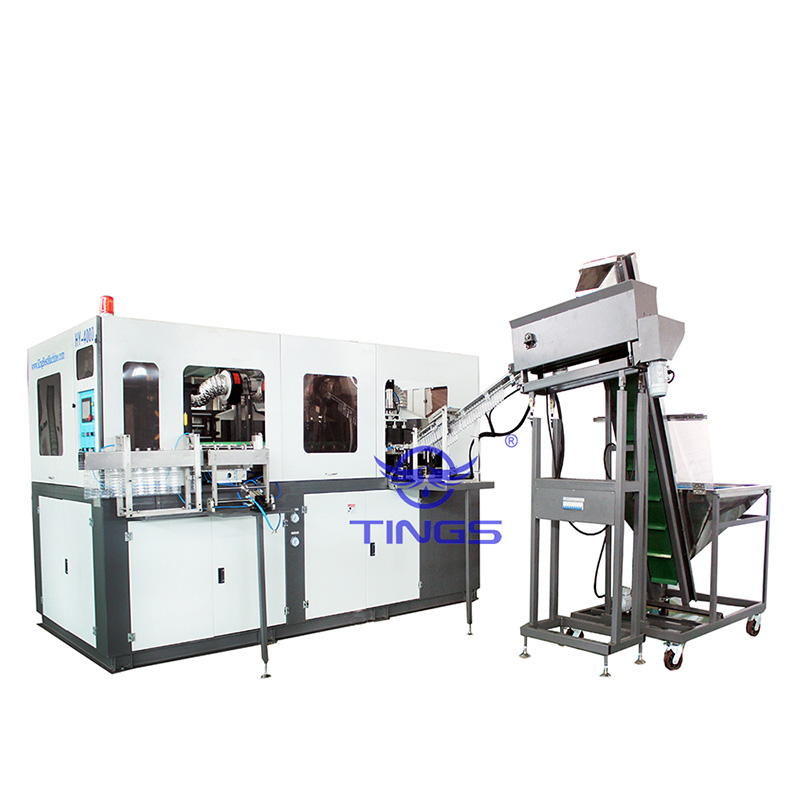

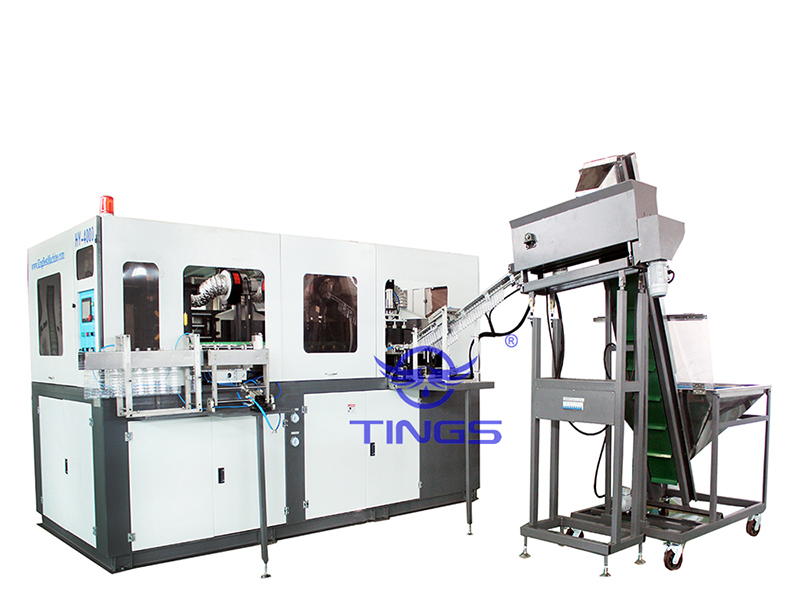

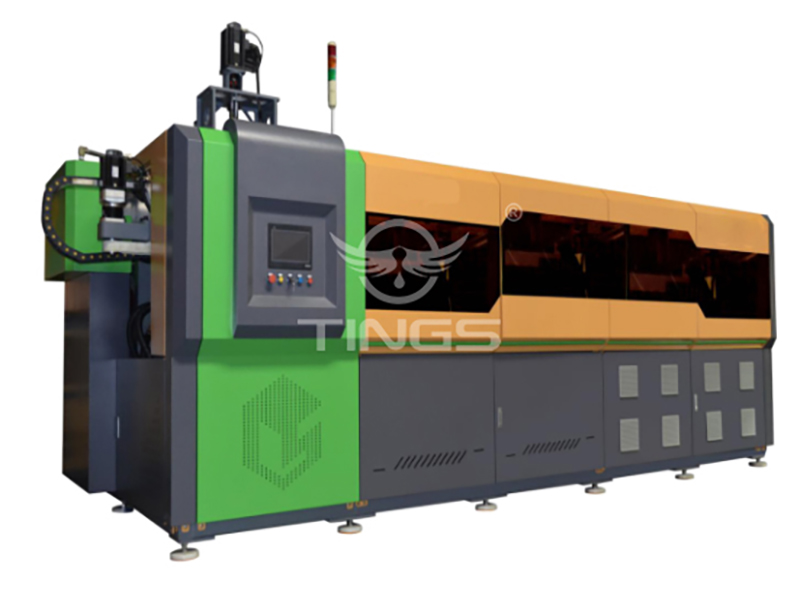

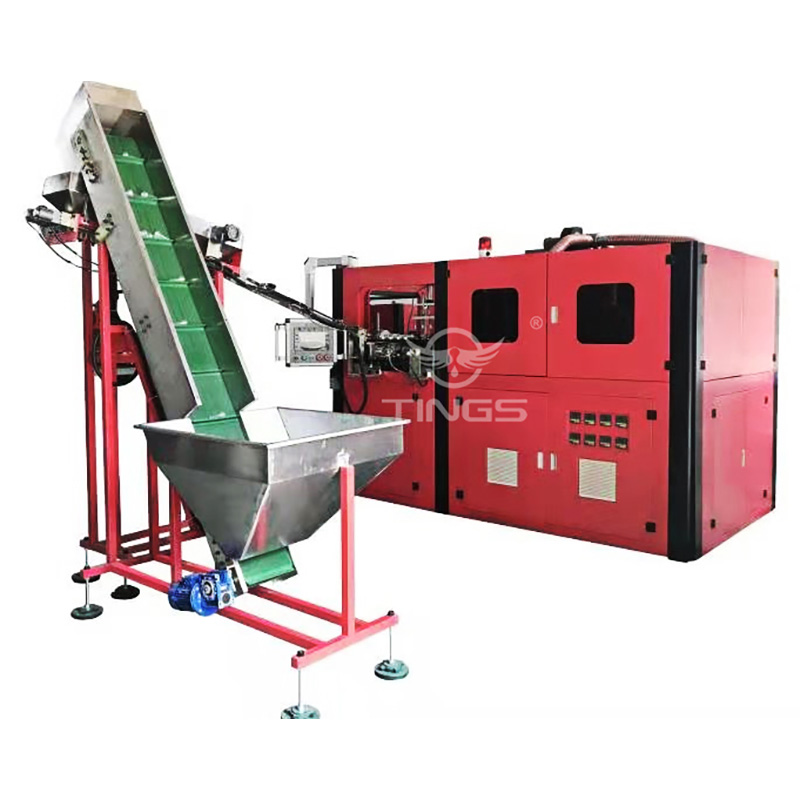

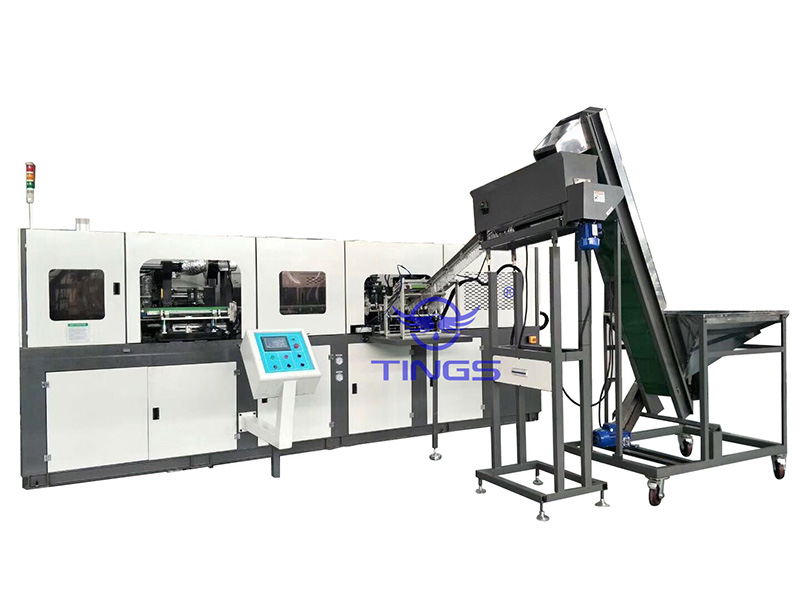

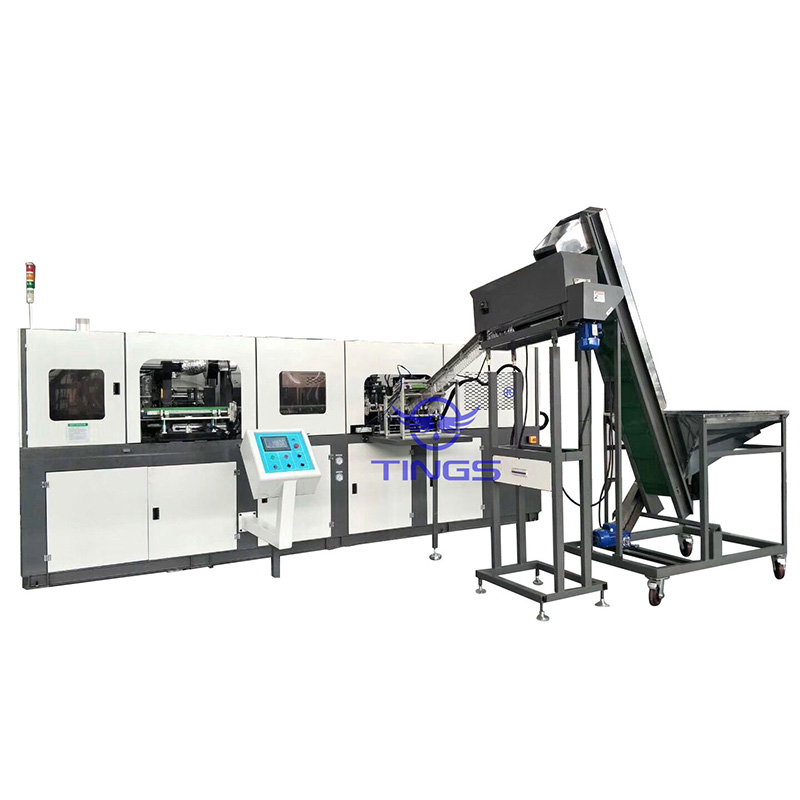

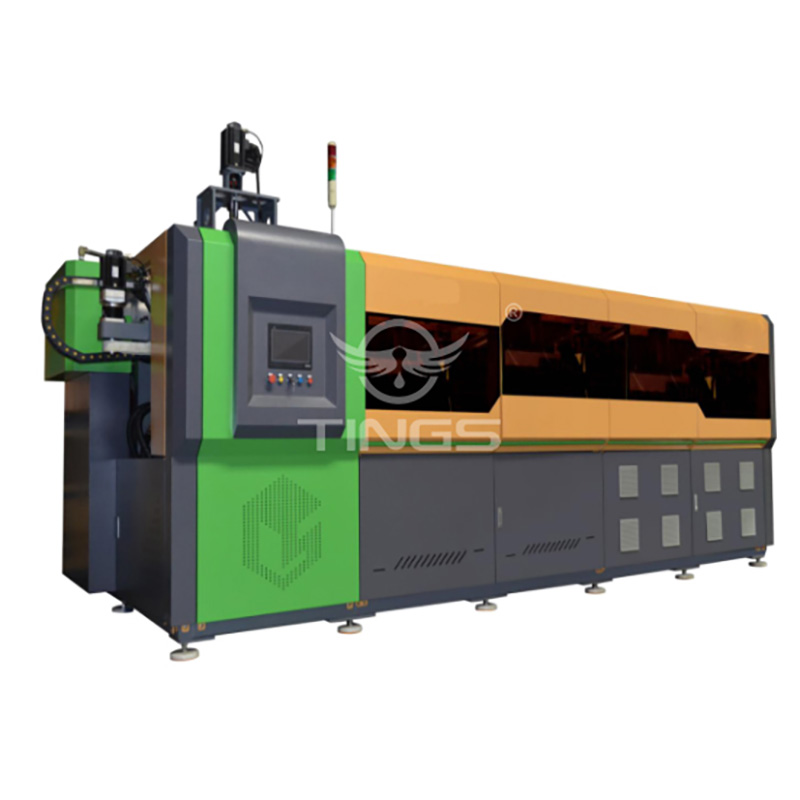

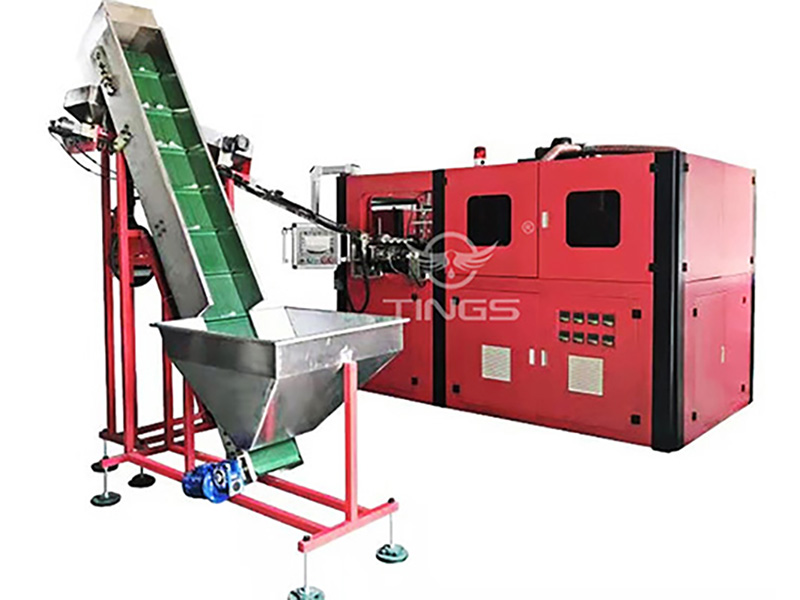

Full Automatic Blow Molding Machine
Model No.: TS-A3, TS-A4, TS-A6, TS-A4S, TS-A8S, TS-A8/2
Product Specification

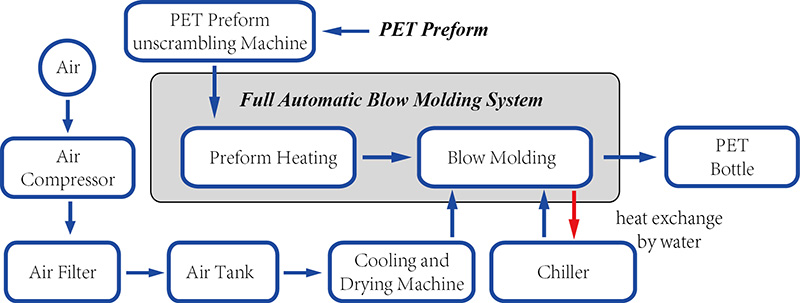

Technical Process
Process Description

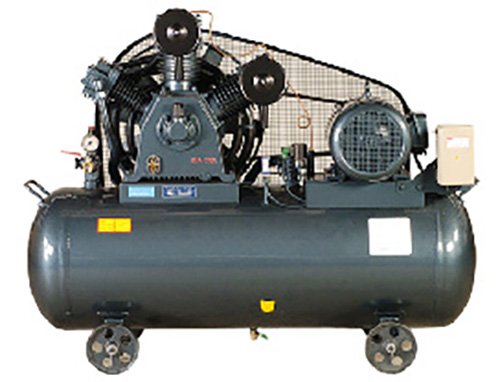

- Air Compressor
Function:
- High pressure air compressor: provides enough air pressure for bottle molding process
- Low pressure air compressor: provides enough air pressure for the running of other parts of the machine

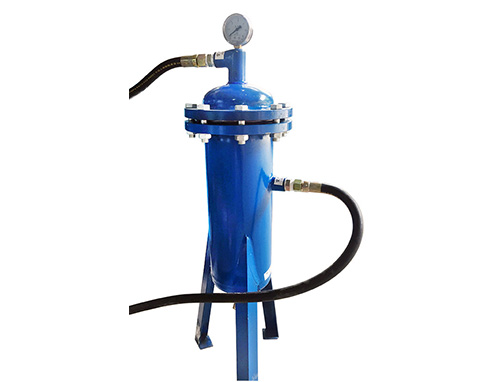

- Air Filter
Function: Filter the compressed air to make surethat there is no any dust inside the air.

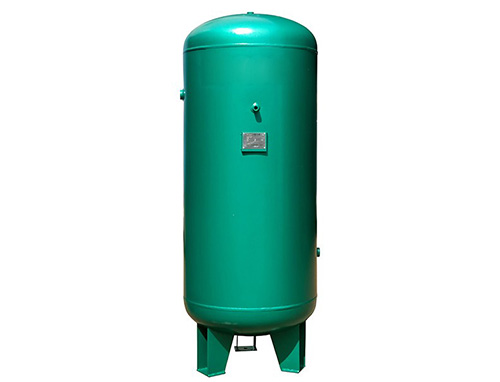

- Air Tank
Function: Storing the high pressure air.

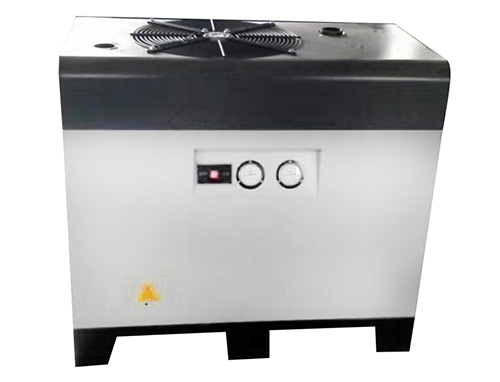

- Cooling and drying machine
Functions: This machine cools and dries the air before it is compressed into the molding machine.

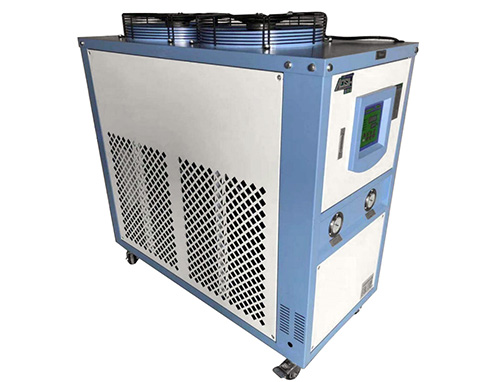

- Chiller
Functions: This machine cools the molding machine by water circle, so that It prevents the molding machine from over-heated after long time working.

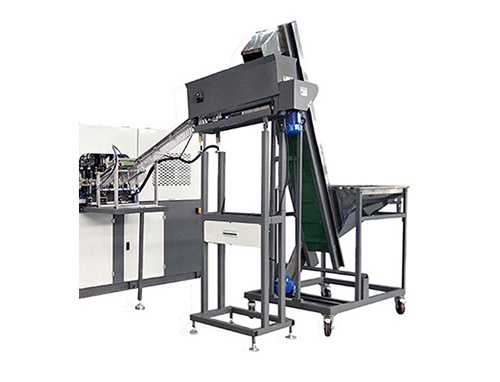

- Preform Unscrambling Machine
Function: PET bottle Preforms will be unscrambled and
conveyed to the preform heating part.

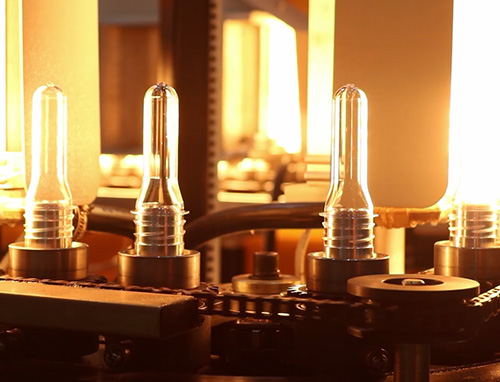

- Preform Heating Part
Function: PET bottle Preforms will be heated slowly in the heating part. They are conveyed into the preform heating part by the preform unscrambling machine.

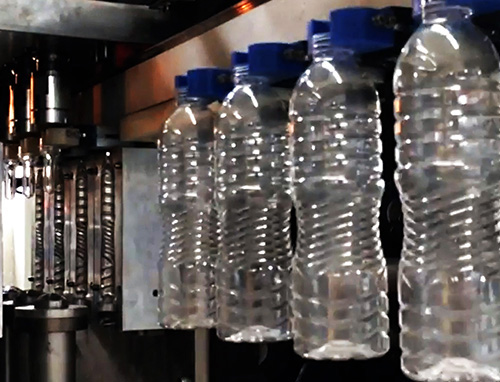

- Bottle Blow Molding
Function: As the preforms are heated, they will be conveyed and fixed into the bottle mold. After that the mold is closed. Then as the high pressure air is injected into the prefrom, the bottle is formed.

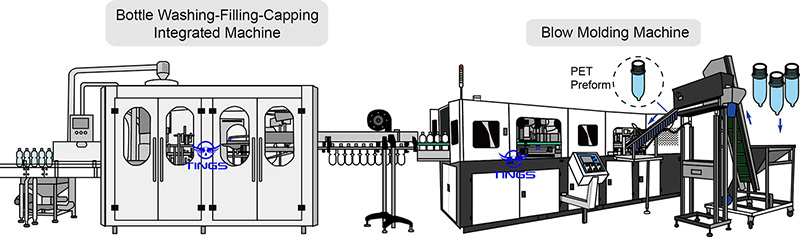

Then the bottle will be used for beverage filling production or the filling of other liquid products.
Technical Data
More Capacity Choices

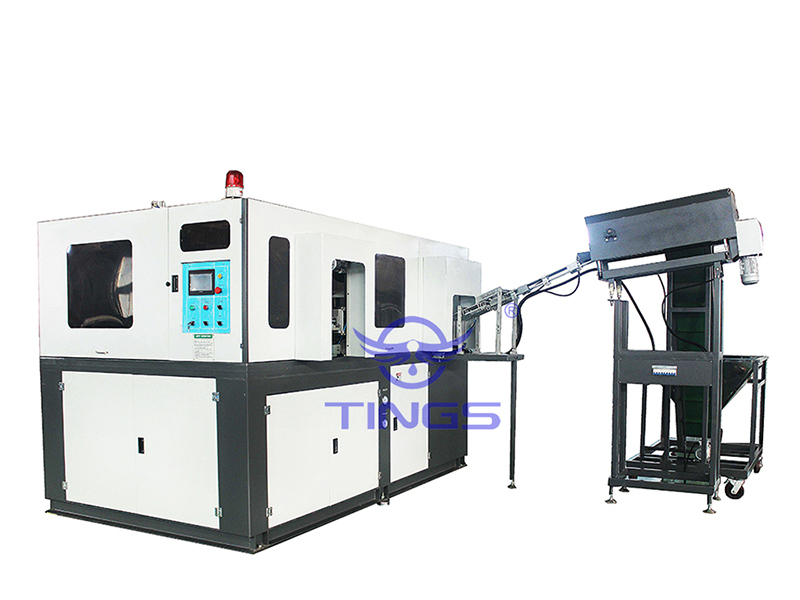

| Model | TS-A3 |
| Capacity | 2500 to 3000 BPH for 200ml to 2000ml bottle |
| Consumable Material | PET preform |
| Working Voltage | To be customized |
| General Energy Consumption | 14kw |
| HP air compressor | 1 set, 2.4m3/min, 30bar |
| LP air compressor | 1 set, 2.0m3/min, 30bar |
| Air Tank | 1 set, 0.6m3/min, 30bar |
| Air Filter | 1set, 1.0m3/min, 30bar |
| Cooling and Drying Machine | 1 set, 2.0m3/min, 30bar |
| Chiller | 1 set, 3HP |
| Bottle Mold | 1 set, 3 cavities |
| Preform Unscrambling Machine | 1 set |
Model | TS-A4 |
Capacity | 3500 to 4000 BPH for 200ml to 2000ml bottle |
Consumable Material | PET preform |
Working Voltage | To be customized |
General Energy Consumption | 14kw |
HP air compressor | 1 set, 3.0m3/min, 30bar |
LP air compressor | 1 set, 2.0m3/min, 30bar |
Air Tank | 1 set, 0.6m3/min, 30bar |
Air Filter | 1set, 1.0m3/min, 30bar |
Cooling and Drying Machine | 1 set, 2.0m3/min, 30bar |
Chiller | 1 set, 3HP |
Bottle Mold | 1 set, 4 cavities |
Preform Unscrambling Machine | 1 set |
Model | TS-A6 |
Capacity | 3500 to 4000 BPH for 200ml to 2000ml bottle |
Consumable Material | PET preform |
Working Voltage | To be customized |
General Energy Consumption | 18 to 25kw |
HP air compressor | 1 set, 4.8m3/min, 30bar |
LP air compressor | 1 set, 2.0m3/min, 30bar |
Air Tank | 1 set, 1.0m3/min, 30bar |
Air Filter | 1 set, 1.0m3/min, 30bar |
Cooling and Drying Machine | 1 set, 2.0m3/min, 30bar |
Chiller | 1 set, 5HP |
Bottle Mold | 1 set, 6 cavities |
Preform Unscrambling Machine | 1 set |
Model | TS-A4S |
Capacity | 7000 to 9000 BPH for 200ml to 600ml bottle |
Consumable Material | PET preform |
Working Voltage | To be customized |
General Energy Consumption | 18 to 25kw |
HP air compressor | 1 set, 3.0m3/min, 30bar |
LP air compressor | 1 set, 2.0m3/min, 30bar |
Air Tank | 1 set, 0.6m3/min, 30bar |
Air Filter | 1 set, 1.0m3/min, 30bar |
Cooling and Drying Machine | 1 set, 2.0m3/min, 30bar |
Chiller | 1 set, 5HP |
Bottle Mold | 1 set, 4 cavities |
Preform Unscrambling Machine | 1 set |
Model | TS-A8S |
Capacity | 12000 to 13000 BPH for 200ml to 600ml bottle |
Consumable Material | PET preform |
Working Voltage | To be customized |
General Energy Consumption | 26 to 35kw |
HP air compressor | 1 set, 6.0m3/min, 30bar |
Air Tank | 1 set, 0.6m3/min, 30bar |
Air Filter | 1 set, 1.0m3/min, 30bar |
Cooling and Drying Machine | 1 set, 2.0m3/min, 30bar |
Chiller | 1 set, 5HP |
Bottle Mold | 1 set, 8 cavities |
Preform Unscrambling Machine | 1 set |
Model Special for 1.5L bottle | TS-A8S/2 |
Capacity | 12000 to 13000 BPH |
Consumable Material | PET preform |
Working Voltage | To be customized |
General Energy Consumption | 50 to 70kw |
HP air compressor | 1 set, 10m3/min, 30bar |
Air Tank | 1 set, 0.6m3/min, 30bar |
Air Filter | 1 set, 1.0m3/min, 30bar |
Cooling and Drying Machine | 1 set, 2.0m3/min, 30bar |
Chiller | 1 set, 5HP |
Bottle Mold | 1 set, 8 cavities |
Preform Unscrambling Machine | 1 set |
