Carbonated Drinks Mixing System

Carbonated drinks mixing system

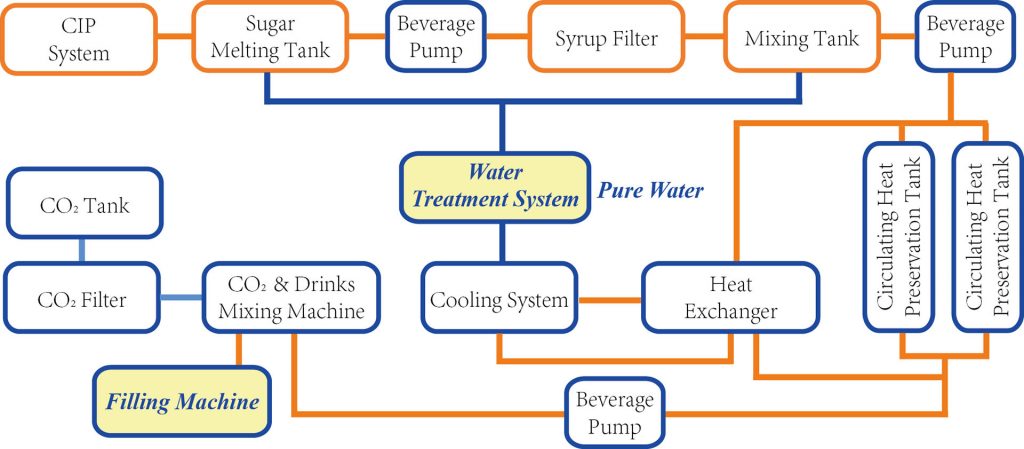

General Process Flow Chat

碳酸饮料调配系统

Solutions can be slightly diferent because the beverage kinds, production capacity, equipment quantity will be different. So it depands on customers’ actual situations.

Equipment and process introduction

Sugar Melting Tank

Material: stainless steel 304/316, nickel not less than 8%
Function: The device melts the sugar by heating and mixing water.

juice pump1

Material: Stainless Steel 304/ 316

Function: The device provides sufficient pressure for pumping juice from one device to the other.

syrup filter 1

Material: Stainless Steel 304/ 316

Function: The device filters the sugar that is not melted in the syrup from the sugar melting tank

.

Mixing Tank 1

Material: Stainless Steel 304/ 316

Function: Syrup, water and other materials are fully mixed in the mixing tank.

Carbon Dioxide Purifier

Material: Stainless Steel 304/ 316

Function: The Device filters the carbon dioxide, so that no dust will entre the mixing system.

Buffter tank or heat preserve tank

Material: Stainless Steel 304/ 316

Function: The device preserve the juice temperature with circulation of beverage flow.

Carbon Dioxide and Drinks Mixing Machine

Material: Stainless Steel 304/ 316

Function: This device mixes the beverage and carbon dioxide together.

Chiller

Function: The Machine is for fast chilling the high temperature of the beverage. (cooling system)

Cooling Tower

Function: This machine is together with the chiller. (cooling system)

Heat Exchanging Device

Material: Stainless Steel 304/ 316

Function: This device exchanges the temperature between the hot and chill bevergae, so as to make the heated beverage cool down slowly.

CIP Cleaning System

Material: Stainless Steel 304/ 316

Function: The Machine is for cleaning the inner parts of all machine and tubing for the whole mixing system with detergent and high pressure water flow.

working platform

Material: Stainless Steel 304/ 316

Function: This platform is specially used for operating all equipment in the mixing system. It can be customized according to your requirement.
